Product Description

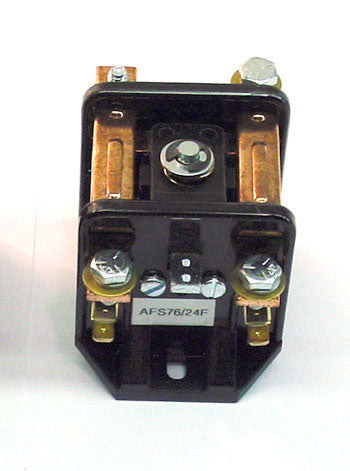

24VDC contactor for electric lift truck applications, featuring a single pole configuration, manual override switch, 1NO + 1NC contacts, and rated for minimum 25A continuous current. Cross-references include CTR-24-316 and CT523-36. Designed for reliable service in AC and DC control circuits.
Specifications
Electrical Specifications
| Coil Voltage | 24VDC |
| Contact Configuration | Single pole: 1NO + 1NC contacts |
| Nominal Current Capacity | 25A minimum (AC-1 duty) |
| Rated Electrical Life | 100,000 coil operations |
| Contact Maximum AC Rating | 6A at 120VAC, 3A at 240VAC, 1.5A at 480VAC, 1.2A at 600VAC (AC-15 duty) |
| Manual Override Switch | Yes - for emergency control and maintenance |
| Service Type | AC and DC control circuits |
Cross Reference and Compatibility
| Direct Replacement Part Numbers | CTR-24-316, CTR-24-319, CT523-36 |
| Equivalent Part Numbers | CTR-12-100, CTR-12-103, CTR-12-106, CTR-12-112, CT975-36 |
| Part Number | IC2800M611AA13A |
Frequently Asked Questions
Q: What are the key specifications of the IC2800M611AA13A contactor?
A: The IC2800M611AA13A is a 24VDC contactor with single pole configuration, 1 normally open (1NO) plus 1 normally closed (1NC) contact arrangement, and rated for minimum 25A continuous current under AC-1 duty. It includes a manual override switch for emergency control.
Q: What are the cross-reference part numbers for IC2800M611AA13A?
A: The IC2800M611AA13A is interchangeable with CTR-24-316 and CT523-36. Equivalent part numbers include CTR-12-100, CTR-12-103, CTR-12-106, CTR-12-112, and CT975-36. Confirm your equipment documentation to ensure correct replacement.
Q: Can the IC2800M611AA13A be used in both AC and DC control circuits?
A: Yes, this contactor is designed for reliable service in AC and DC control circuits commonly found in electric lift trucks. The 24VDC coil rating and 25A nominal capacity make it suitable for primary control applications in material handling equipment from Crown, Toyota, Raymond, Yale, and Hyster platforms.
Q: What does AC-1 duty rating mean for the IC2800M611AA13A?
A: AC-1 duty designates the contactor for non-inductive or slightly inductive loads in AC circuits, with the 25A minimum continuous current rating representing safe thermal and electrical performance under normal control circuit conditions in electric lift trucks.
Q: What is the purpose of the manual override switch on this contactor?
A: The manual override switch allows operators or technicians to bypass solenoid control and manually engage or disengage the contactor contacts. This feature is essential for emergency operations and maintenance procedures when power is unavailable or control circuits malfunction.
