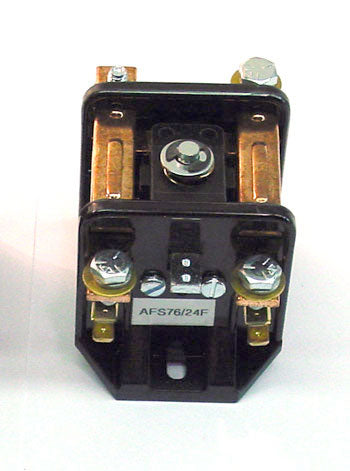

Contactor 24VDC Coil for Electric Lift Trucks - Fits General Electric
IC2800M611AD13A
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description
Contactor with 24VDC coil for electric lift truck applications. Features single-pole, normally open contacts, screw terminals for wire sizes 0.75–4 mm², surge suppression, and self-extinguishing thermoplastic housing. Rated for AC and DC control circuits up to 6A, DIN rail or panel mount compatible.
Specifications
Part Numbers & Compatibility
| Make | General Electric |
| Part Number | IC2800M611AD13A |
| Application | Electric lift truck applications |
Electrical Specifications
| Coil Voltage | 24VDC nominal |
| Electrical Endurance | 100,000 cycles at rated current |
Performance Specifications
| Maximum AC Contact Rating | 10A at 120VAC (A600 designation); 3A at 240VAC; 1.5A at 480VAC |
| Maximum DC Contact Rating | 0.55A at 125VDC; 0.55A at 250VDC (P300 designation) |
Additional Specifications
| Coil Power Consumption | Approximately 3.5 VA at 24VDC |
| Auxiliary Contact Options | Available as 1NO+1NC or 2NO+2NC |
| Frame Material | Self-extinguishing thermoplastic housing, UL 94 V0 rated |
| Mechanical Endurance | 10 million operating cycles |
| Contact Type | Single-pole, normally open |
| Terminal Type | Screw terminals for wire sizes 0.75–4 mm² |
| Surge Suppression | Yes |
| Mounting Type | DIN rail or panel mount compatible |
Frequently Asked Questions
Q: What makes and models is the IC2800M611AD13A compatible with?
A: The IC2800M611AD13A is designed for use with electric lift trucks and pallet jacks manufactured by General Electric.
Q: What materials is the IC2800M611AD13A made from and how durable is it?
A: The IC2800M611AD13A is constructed from high-quality materials to ensure durability in industrial environments. Its self-extinguishing thermoplastic housing provides added safety and longevity.
Q: How do I know when to replace the IC2800M611AD13A?
A: Replace the IC2800M611AD13A if it shows signs of wear, such as damaged housing or inconsistent performance. Regular maintenance and inspection can help identify when replacement is necessary.
Q: What are the AC and DC contact ratings for the IC2800M611AD13A?
A: Maximum AC contact ratings are 10 amps at 120VAC, 3 amps at 240VAC, and 1.5 amps at 480VAC. Maximum DC contact ratings are 0.55 amps at 125VDC and 0.55 amps at 250VDC.
Q: What coil power consumption should I expect from the IC2800M611AD13A?
A: The IC2800M611AD13A draws approximately 3.5 VA at 24VDC nominal coil voltage. This low power consumption reduces load on your 24VDC control power supply and generates minimal heat during continuous operation.
Q: What terminal configurations does the IC2800M611AD13A offer?
A: The IC2800M611AD13A features screw terminals rated for wire sizes 0.75 to 4 square millimeters. This range accommodates standard control circuit wire gauges used in electric lift truck and electric pallet jack applications.
Q: Does the IC2800M611AD13A include surge suppression?
A: Yes. The IC2800M611AD13A includes built-in surge suppression to protect coil circuits from voltage spikes caused by relay or solenoid switching.
