24VDC Contactors for Electric Lift Trucks - Fits Albright
SW80-1005L
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

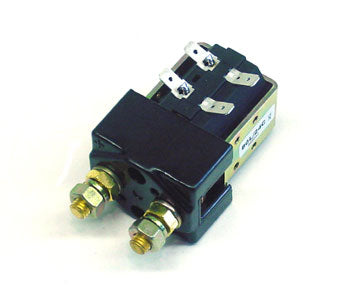

SW80-1005L is a continuous-duty 24VDC contactor for electric lift trucks and pallet trucks. Features a single pole, single throw NO configuration, 100A thermal rating, M8 main terminals, and silver alloy double-breaking contacts. Includes cross-reference OEM numbers for direct replacement.
Specifications
Part Numbers & Compatibility
| Make | Albright |
| Cross-Reference Part Numbers | OEM cross reference: 154548, 800076344, 802820, CT544-24, SW80-113L, ALSW80-24 |
| Part Number | SW80-1005L |
| Manufacturer Part Number | SW80-24, ALSW80-24 |
Electrical Specifications
| Coil Voltage | 24VDC continuous duty |
| Intermittent Current Ratings | 30% Duty: 185A (interrupted)/230A (uninterrupted), 40%: 160A/200A, 50%: 140A/175A, 60%: 130A/160A, 70%: 120A/150A |
| Pull-In Voltage | 16.0VDC maximum |
| Drop-Out Voltage | 6.0VDC maximum |
| Voltage Drop Per Pole | 40 mV at 100A across new contacts |
| Rated Fault Current Breaking Capacity | 600A at 96VDC with blowouts; 600A at 48VDC without blowouts |
Performance Specifications
| Thermal Rating | 100A |
Additional Specifications
| Mounting Holes | M4 tapped holes; mounting bracket available |
| Coil Power Dissipation | 11.08 Watts |
| Typical Pull-In Time | 20 ms |
| Main Terminal Size | M8 |
| Contact Type | Silver alloy double-breaking contacts |
| Configuration | Single pole, single throw NO |
Frequently Asked Questions
Q: Which makes and models is the SW80-1005L compatible with?
A: The SW80-1005L is compatible with Albright electric lift trucks and pallet jacks. Verify compatibility with your specific equipment model before ordering.
Q: What materials are used to ensure durability of the SW80-1005L?
A: The SW80-1005L features silver alloy double-breaking contacts, which provide superior electrical conductivity and extended lifespan.
Q: How do I find the right replacement for my electric lift truck contactor?
A: The SW80-1005L cross-references to part numbers 154548, 800076344, 802820, and CT544-24. It is also interchangeable with SW80-113L and ALSW80-24. Always verify your equipment documentation before ordering.
Q: What are the key features of the SW80-1005L contactor?
A: The SW80-1005L is a continuous-duty 24VDC single pole, single throw contactor with 100A thermal rating and M8 main terminals.
Q: What are the operating conditions for the SW80-1005L?
A: The contactor is rated 100A continuous thermal duty. Under 30 percent duty cycle, it handles 185A interrupted or 230A uninterrupted current. Always stay within rated limits for your specific application.
