Product Description

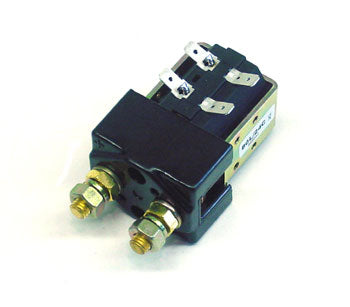

The Albright SW80-113L is a single pole, single throw DC contactor rated for 24V coil voltage, designed for electric lift truck applications. It features a thermal current rating of 100A continuous, robust double-breaking contacts with silver alloy tips, M8 stud main terminals, 6.3mm spade coil connectors, and supports both horizontal and vertical mounting. This contactor supersedes SW80-1683L, SW80-1684L, SW80-1919L, and is interchangeable with BT part numbers 248310 and 208760.
Specifications
Electrical
| Nominal Coil Voltage | 24VDC |
Part Numbers
| Cross-Reference Part Numbers | Replaces SW80-1683L, SW80-1684L, SW80-1919L; BT part number 248310, 208760; Equivalent to BT 208760, BT 248310 |
| OEM Part Number | SW80-113L |
Frequently Asked Questions
Q: What equipment does the Albright SW80-113L contactor replace?
A: The SW80-113L supersedes SW80-1683L, SW80-1684L, and SW80-1919L. It is also interchangeable with BT part numbers 248310 and 208760. Always verify part numbers against your equipment documentation.
Q: What are the electrical specifications of the SW80-113L?
A: The SW80-113L is a 24VDC single pole, single throw contactor with 100A continuous thermal rating, double-breaking contacts with silver alloy tips, M8 stud main terminals, and 6.3mm spade coil connectors.
Q: Can the SW80-113L be mounted in different orientations?
A: Yes. The SW80-113L supports both horizontal and vertical mounting, providing flexibility for various installation configurations in electric lift trucks and pallet trucks.
Q: What makes the silver alloy contact material superior?
A: Silver alloy contacts resist oxidation and corrosion better than standard materials, maintain lower electrical resistance over time, handle higher contact temperatures, and reduce arc erosion during switching cycles.
Q: Which equipment brands use the SW80-113L or its equivalents?
A: This contactor fits electric lift trucks and pallet trucks from manufacturers including BT, Crown, Toyota, Raymond, Yale, Hyster, and similar OEMs. The BT cross-reference numbers 248310 and 208760 confirm compatibility with BT equipment.
Q: What are the terminal specifications for the SW80-113L?
A: Main terminals are M8 studs designed for secure cable connections. Coil connections are 6.3mm spade connectors. Verify these terminal types match your equipment wiring before ordering.
