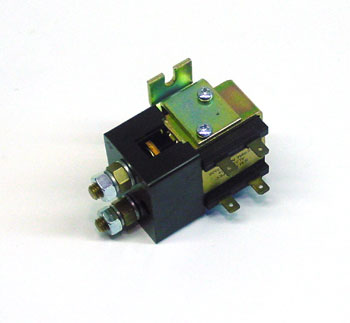

Contactor for Electric Lift Truck - Fits Albright, Crown
SW80-284
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description
The Albright SW80-284 is a robust 24VDC contactor designed for electric lift trucks, pallet jacks, and forklift systems. This single-pole electrical switch delivers reliable, high-performance switching in demanding warehouse and material handling environments. With exceptional fault-breaking capacity and precision M8 stud terminals, the SW80-284 provides the durability and switching reliability required for continuous industrial use in Crown, Yale, Hyster, Toyota, Raymond, and similar electric lift equipment.
Specifications
Part Numbers & Compatibility
| Make | Albright, Crown, Yale, Hyster, Toyota, Raymond, Clark, Jungheinrich |
| Manufacturer Part Number | SW80-284 |
| Application | Electric lift truck applications |
Electrical Specifications
| Coil Voltage | 24VDC nominal |
| Rated Continuous Current | 100A |
| Maximum Uninterrupted Current | 125A |
| Typical Voltage Drop Across New Contacts | 40 mV at 100A |
| Rated Fault Current Breaking Capacity (with blowouts) | 600A at 96VDC |
| Rated Fault Current Breaking Capacity (without blowouts) | 600A at 48VDC |
| Resistive Load Fault Current (with blowouts) | 190A at 96VDC |
| Resistive Load Fault Current (without blowouts) | 190A at 60VDC |
Additional Specifications
| Terminal Type | M8 stud terminals |
| Configuration | Single pole, single throw |
Frequently Asked Questions
Q: Which electric lift truck brands is the SW80-284 compatible with?
A: The SW80-284 is compatible with Albright, Crown, Yale, Hyster, Toyota, Raymond, Clark, and Jungheinrich electric lift truck systems.
Q: What materials are used to ensure the durability of the SW80-284?
A: The SW80-284 is constructed with high-quality materials designed for long-term performance in demanding industrial environments.
Q: How can I determine if the SW80-284 is the right replacement part for my equipment?
A: To ensure compatibility, verify that your electric lift truck is manufactured by one of the supported brands and check for part number matches or cross-references in the specifications table.
Q: What is the fault current breaking capacity of the SW80-284?
A: The SW80-284 has a rated fault current breaking capacity of 600A at 96VDC with blowouts installed and 600A at 48VDC without blowouts.
Q: What terminal configuration does the SW80-284 use?
A: The SW80-284 features M8 stud terminals, which are standard for industrial electrical connections in electric lift truck systems.
