Albright 24V DC Contactor for Electric Pallet Jacks - Fits Crown, Toyota B2SW11, B2SW12
SW80-6
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

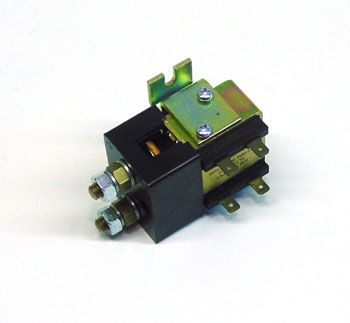

Albright SW80-6 24V DC contactor designed for electric vehicles and industrial applications.
Specifications
Part Numbers & Compatibility
| Make | Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, Cat Caterpillar, BT, John Deere, Komatsu, Kubota |
| Model | B2SW11, B2SW12 |
| Replaces Part Numbers | AFS19 family relays |
| Cross-Reference Part Numbers | Replaces AFS19 family relays |
Electrical Specifications
| Voltage | 24V DC |
| Current Rating | 100A interrupted, 125A uninterrupted |
| Pull-In Voltage | Maximum 16.0V |
| Drop Out Voltage | Maximum 6.0V |
| Typical Voltage Drop Per Pole | 40mV at 100A |
Additional Specifications
| Mechanical Durability | > 5,000,000 cycles |
| Typical Pull-In Time | 20ms |
Frequently Asked Questions
Q: Which electric lift truck brands are compatible with the SW80-6?
A: The SW80-6 is compatible with electric lift trucks from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, CAT, BT, John Deere, Komatsu, and Kubota. Ensure your truck operates at 24VDC and uses Albright-style terminals.
Q: What is the mechanical durability of the SW80-6?
A: The SW80-6 is rated for greater than 5,000,000 mechanical cycles, making it suitable for continuous-duty industrial and electric vehicle appliCATions with extended operational life expectancy.
Q: How do I know if the SW80-6 is failing?
A: Signs of SW80-6 failure include delayed motor response, audible chattering during engagement, intermittent loss of power, reduced hoist speed, or visible pitting on contact surfaces. Test continuity and voltage drop across contacts to confirm failure.
Q: What part numbers does the SW80-6 cross-reference or replace?
A: The SW80-6 replaces the AFS19 family of relays and contactors. Cross-reference your legacy part number before ordering to ensure compatibility with your electric lift truck or industrial equipment.
Q: What are the key features of the SW80-6?
A: The SW80-6 is a 24V DC contactor designed for use in electric lift trucks and industrial equipment. It offers reliable performance with a high mechanical cycle rating, making it suitable for demanding appliCATions.
