Albright SW180L-326 Contactor 24VDC for Electric Lift Trucks
AL SW180L-326
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

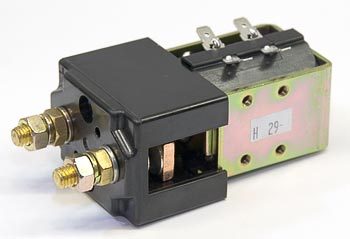

The Albright SW180L-326 Contactor is a 24VDC single pole, single throw (SPST) relay engineered for electric lift truck and industrial vehicle applications. Rated at 150A continuous thermal current with welded-resistant silver alloy double breaking contacts and integrated M8 main stud terminals, it offers robust performance and mechanical durability over 5,000,000 operations. Intermittent current capacity ranges up to 275A and coil voltage is standard at 24VDC continuous duty.
Specifications
Part Numbers & Compatibility
| Make | Albright, Hyster, Toyota, JLG, Genie, Caterpillar, Yale |
| Model | GLC080-120 |
| Manufacturer Part Number | AL SW180L-326 |
| Cross-Reference Part Numbers | ALSW180L-326, ALSW180L326, SW180L326 |
| Part Number | SW180L-326 |
| Compatibility | Compatible with SW180 series Albright contactors for electric lift trucks |
| Cross Reference Part Numbers | ALSW180L-326, ALSW180L326, SW180L326 |
Electrical Specifications
| Coil Voltage | 24VDC |
| Fault Current Breaking Capacity | 1000A at 48VDC without blowouts |
| Typical Voltage Drop per Pole at 150A | 40mV |
| Continuous Thermal Current | 150A |
| Intermittent Current Capacity | Up to 275A |
Performance Specifications
| Duty Cycle Range | Capable of intermittent duty up to 70% duty cycle |
Additional Specifications
| Housing Material | High-strength molded thermoplastic |
| Mechanical Durability | Over 5,000,000 operations |
| Contact Material | Welded-resistant silver alloy |
| Main Stud Terminals | Integrated M8 |
| Relay Type | Single pole, single throw (SPST) |
Frequently Asked Questions
Q: What makes and models is the AL SW180L-326 compatible with?
A: The AL SW180L-326 is compatible with electric lift trucks and industrial vehicles from Albright, Hyster, Toyota, JLG, Genie, Caterpillar, and Yale. It fits models such as GLC080-120.
Q: What materials and construction features make this contactor durable?
A: The AL SW180L-326 features welded-resistant silver alloy double breaking contacts and integrated M8 main stud terminals. These materials ensure reliable arc suppression, contact separation, and resistance to erosion under heavy current loads.
Q: How can I find replacement parts for the AL SW180L-326?
A: Replacement contactors for the AL SW180L-326 can be found using cross-reference part numbers such as ALSW180L-326, ALSW180L326, and SW180L326. Ensure that coil voltage (24VDC), current ratings, and terminal type (M8) match your equipment requirements.
Q: What are the electrical specifications of the AL SW180L-326?
A: The AL SW180L-326 is a 24VDC single pole, single throw (SPST) relay rated at 150A continuous thermal current. Intermittent current capacity reaches up to 275A, and fault current breaking capacity is 1000A at 48VDC with appropriate load conditions.
Q: What is the service life of the AL SW180L-326?
A: The AL SW180L-326 is designed for over 5,000,000 mechanical operations, ensuring dependable service life in demanding electric lift truck applications.
Q: What voltage range is the AL SW180L-326 rated for?
A: The AL SW180L-326 is rated for contact circuit voltage between 6 and 80 VDC, making it suitable for a wide range of electric lift truck and industrial vehicle applications.
