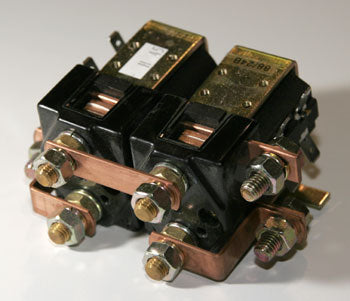

Contactor for Electric Lift Truck - Fits Albright, Crown 8HBE30, 8HBE40, 8HBC30
AL SW88-24
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Albright SW88-24 24V DC contactor features single pole double breaking main contacts, 100A thermal current rating, M8 terminal studs, and is engineered for electric lift truck and related DC motor loads. Includes failsafe reversing design and offers mechanical durability exceeding 5 million cycles.
Specifications
Part Numbers & Compatibility
| Make | Albright, Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich |
| Model | 8HBE30, 8HBE40, 8HBC30, 8FGCU25, 8FGCU30, 8FGCU35, R40ZS45, R40ZS50, R45ZS45, R50ZS50, H80Z, H90Z, J35ZS, J40ZS, J45ZS, J50ZS |
| Manufacturer Part Number | SW88-24 |
| Cross Reference Part Numbers | ALSW88-24, ALSW8824, SW8824 |
| Application | Electric lift truck DC motor control and reversing applications |
Electrical Specifications
| Nominal Coil Voltage | 24VDC |
| Thermal Current Rating | 100A |
| Intermittent Current Rating (30% duty) | 185A |
| Intermittent Current Rating (40% duty) | 160A |
| Intermittent Current Rating (50% duty) | 140A |
| Intermittent Current Rating (60% duty) | 130A |
| Intermittent Current Rating (70% duty) | 120A |
| Typical Voltage Drop at 100A | 50 mV per pole |
| Coil Voltage Range | 6VDC – 240VDC available (model-specific) |
Additional Specifications
| Coil Power Dissipation (continuous duty) | 7 – 13 W |
| Typical Pull-In Time | 20 ms |
| Typical Drop-Out Time (without suppression) | 5 ms |
| Terminal Studs | M8 |
| Contact Configuration | Single Pole Double Breaking |
| Mechanical Durability | Exceeding 5 million cycles |
| Failsafe Reversing Design | Yes |
| Typical Pull In Time | 20 ms |
| Typical Drop Out Time (without Suppression) | 5 ms |
Frequently Asked Questions
Q: Which electric lift truck models is the AL SW88-24 compatible with?
A: The AL SW88-24 is compatible with 24VDC electric lift trucks from Albright, Crown, Toyota, Raymond, Yale, Hyster, and Jungheinrich. It fits models including 8HBE30, 8HBE40, 8HBC30, 8FGCU25, 8FGCU30, 8FGCU35, R40ZS45, R40ZS50, R45ZS45, R50ZS50, H80Z, H90Z, J35ZS, J40ZS, J45ZS, and J50ZS.
Q: What materials or features make the AL SW88-24 durable?
A: The AL SW88-24 is built for long-term use with a mechanical durability rating exceeding 5 million cycles. It features a single pole double breaking design that enhances reliability and performance in DC motor reversing applications.
Q: How do I know if the AL SW88-24 is the right replacement for my lift truck?
A: The AL SW88-24 is a suitable replacement for compatible electric lift truck models. Ensure your truck uses a 24VDC system with single pole double breaking reversing design and verify terminal stud compatibility before ordering.
Q: What is the function of a single pole double breaking contactor?
A: A single pole double breaking contactor, like the AL SW88-24, ensures both contact points break the load circuit simultaneously. This design improves reliability and reduces arcing during DC motor reversing operations.
Q: What are the key features of the AL SW88-24 contactor?
A: The AL SW88-24 is a 24VDC contactor with single pole double breaking main contacts and a thermal current rating of 100A. It is engineered for use with electric lift trucks and DC motor loads, offering a failsafe reversing design.
