Contactor for Crown RD5200, Caterpillar RR5725-35, RR5725-45, RD5260S-40
CTR-24-209
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

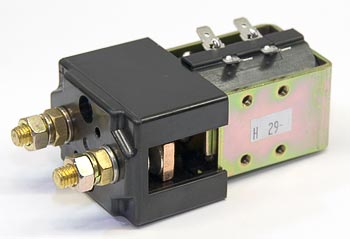

CAT Caterpillar CTR-24-209 is a 24VDC double pole, double throw contactor rated for 180A intermittent duty, engineered for electric lift truck circuits. Features bolt-on steel mounting, OEM-grade silver alloy contacts, and robust coil insulation. Directly replaces or cross-references RD5260S-40 and Universal Products CTR-24-209 part numbers.
Specifications
Part Numbers & Compatibility
| Make | Crown, Caterpillar |
| Model | RD5200, RR5725-35, RR5725-45, RD5260S-40 |
| Typical Application Voltage | 24 VDC nominal circuit/controls |
| Part Number | CTR-24-209 |
| Cross-Reference Part Numbers | RD5260S-40 |
| Equivalent Part Number | Universal Products CTR-24-209 |
| Cross Reference Part Numbers | RD5260S-40 |
Electrical Specifications
| Coil Voltage | 24VDC |
| Continuous Current Rating | 180 A |
Performance Specifications
| Duty Cycle | 180A intermittent duty |
Additional Specifications
| Frame Material | Steel housing with protective insulator |
| Contact Type | Double pole, double throw |
| Mounting Type | Bolt-on |
| Contact Material | OEM-grade silver alloy |
| Coil Insulation | Robust |
Frequently Asked Questions
Q: What makes and models is the CTR-24-209 compatible with?
A: The CTR-24-209 is compatible with Crown and Caterpillar electric lift trucks, including models RD5200, RR5725-35, RR5725-45, and RD5260S-40.
Q: What material is the CTR-24-209 made from?
A: The CTR-24-209 features durable steel mounting and silver alloy contacts, ensuring long-lasting performance in material handling environments.
Q: How do I know if the CTR-24-209 is the right replacement part for my lift truck?
A: Verify your lift truck model and check the compatibility list. The CTR-24-209 is designed to fit Crown and Caterpillar electric lift trucks, including RD5200, RR5725-35, RR5725-45, and RD5260S-40.
Q: What type of contactor is the CTR-24-209?
A: The CTR-24-209 is a double pole, double throw (dpdt) electrical relay designed for electric lift truck circuits.
Q: What coil voltage does the CTR-24-209 require?
A: The CTR-24-209 requires 24vdc coil voltage. Confirm your control circuit supplies 24vdc nominal before installation.
Q: What are the key features of the CTR-24-209?
A: The CTR-24-209 features bolt-on steel mounting, silver alloy contacts, and robust coil insulation for reliable performance in electric lift truck applications.
