Product Description

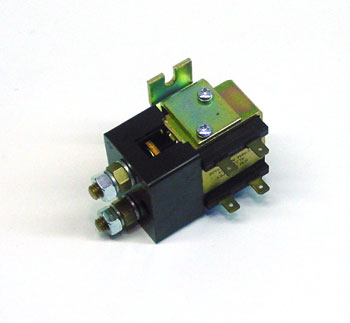

Contactor, 24V (DX 51756) is an industrial-grade electromagnetic relay designed for use in 24V electric lift trucks, offering high-current load switching in main power applications; compatible with Drexel series electric forklifts and interchangeable with OEM part number 51756.
Specifications
Electrical
| Nominal Coil Voltage | 24VDC |
| Intended Current Path | High-current main power circuit |
| Application Voltage | 24V electric power supply |
Part Numbers & Compatibility
| Manufacturer Part Number | DX 51756 |
| OEM Part Number | 51756 |
| Alternate Part Number | DX51756 |
| Cross-Reference Part Numbers | 51756, DX51756 |
Frequently Asked Questions
Q: What is the DX 51756 contactor and what does it do?
A: The DX 51756 is an industrial-grade electromagnetic relay contactor rated for 24VDC operation. It switches high-current loads in main power circuits of electric lift trucks, controlling power delivery to the motor and drive system with precise electrical isolation.
Q: What voltage is the DX 51756 contactor rated for?
A: The DX 51756 contactor is designed for 24VDC nominal coil voltage applications. Do not apply different voltages to this part, as it will not function correctly and may fail.
Q: Which equipment brands and models is the DX 51756 compatible with?
A: The DX 51756 is compatible with Drexel series electric forklifts and lift trucks. It is interchangeable with OEM part number 51756. Cross-reference part numbers include DX51756.
Q: What current capacity does the DX 51756 contactor handle?
A: The DX 51756 is rated for high-current main power circuit switching in 24V electric lift truck systems. Verify your equipments current draw specification before ordering to ensure proper load rating compatibility.
Q: How long does the DX 51756 contactor typically last?
A: Contactor lifespan depends on switching cycles and operating conditions. Most contactors perform for 5 to 7 years under normal duty. Frequent heavy-load switching, moisture exposure, or electrical spikes reduce lifespan. Signs of failure include arcing, welded contacts, or coil burnout.
Q: What symptoms indicate the DX 51756 contactor needs replacement?
A: Failure symptoms include motor does not respond to controls, power cuts out intermittently, audible clicking or buzzing from the contactor, or visible burn marks on contact surfaces. A multimeter can confirm electrical continuity loss.
