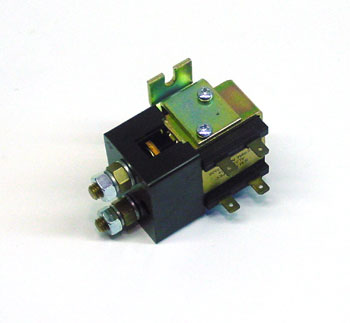

Raymond 24VDC Power Contactor Electric Lift Truck
RA 1-105-216
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Raymond OEM 24VDC power contactor (RA 1-105-216) for electric lift trucks; direct-coil actuated, copper alloy tips, molded thermoset body, suitable for main circuit control; compatible with Raymond equipment under cross-referenced part numbers RA1-105-216, RA1105216, 1105216.
Specifications
Part Numbers & Compatibility
| Make | Raymond, Toyota, Still, Caterpillar, Towmotor |
| Model | 111-Series, 4100 |
| Part Number | RA 1-105-216 |
| Manufacturer Part Number | RA1-105-216 |
| Cross-Reference Part Numbers | RA1105216, 1105216 |
| Cross Reference Part Numbers | RA1105216, 1105216 |
Electrical Specifications
| Coil Voltage | 24VDC nominal |
| Control Voltage | 24VDC |
Performance Specifications
| Contact Rating | Rated for electric lift truck main circuit |
| Operating Mechanism | Spring-return, direct acting |
Additional Specifications
| Contact Type | Power contactor, single-pole, normally open |
| Service Duty | Continuous duty, compatible with electric lift truck main power circuit |
| Description | Raymond OEM 24VDC power contactor (RA 1-105-216) for electric lift trucks; direct-coil actuated, copper alloy tips, molded thermoset body, suitable for main circuit control; compatible with Raymond equipment under cross-referenced part numbers RA1-105-216, RA1105216, 1105216. |
Frequently Asked Questions
Q: What makes and models is the RA 1-105-216 compatible with?
A: The RA 1-105-216 is compatible with Raymond, Toyota, Still, Caterpillar, and Towmotor equipment. It fits models including the 111-Series and 4100.
Q: What material are the contacts made from in the RA 1-105-216?
A: The RA 1-105-216 features copper alloy contact tips. Copper alloy provides consistent electrical conductivity, low contact resistance, and durability under repeated electrical switching cycles typical in lift truck main circuits.
Q: What is the purpose of the molded thermoset body in the RA 1-105-216?
A: The molded thermoset body provides structural integrity, electrical insulation, and heat resistance. It protects the internal contact mechanism and coil from mechanical damage and thermal stress during normal lift truck operation.
Q: What are the cross-reference part numbers for the RA 1-105-216?
A: The RA 1-105-216 is also referenced as RA1-105-216, RA1105216, and 1105216 across Raymond documentation and legacy systems. Verify your equipment documentation uses one of these recognized cross-references before ordering.
Q: What is the contact configuration of the RA 1-105-216?
A: The RA 1-105-216 is a single-pole, normally open power contactor. When energized, it closes to complete the main circuit. It is designed for reliable switching of main power circuits in electric lift trucks.
