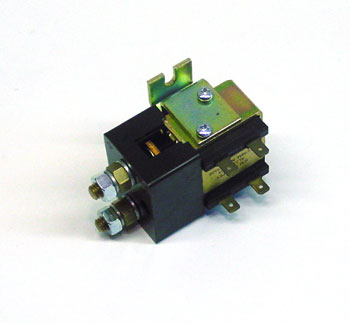

Yale 24VDC Electromagnetic Contactor
YL 504736501
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description
Yale YL 504736501 is a 24VDC electromagnetic contactor designed for electric lift truck traction and power applications. Features single-pole, silver alloy contacts, 100A nominal current capacity, and compatibility with Yale electric pallet jacks and walkies. Supersedes and cross-references 5047365-01 and YT504736501.
Specifications
Part Numbers & Compatibility
| Make | Yale |
| Application | Traction/Power Contact for Electric Lift Truck |
| Part Number | YL 504736501 |
| Manufacturer Part Number | 504736501 |
| Cross-Reference Part Numbers | 5047365-01, YT504736501 |
| Equivalent Part Numbers | 504736501, YL504736501, YT504736501 |
| Cross Reference Part Numbers | 5047365-01, YT504736501 |
| Compatibility | Compatible with Yale electric pallet jacks and walkies |
Electrical Specifications
| Coil Voltage | 24VDC nominal |
| Current Rating (Nominal) | 100A continuous at 24VDC |
Performance Specifications
| Interruption Capacity | 800A at 24VDC, resistive load |
Additional Specifications
| Insulating Body Material | Glass-filled nylon housing |
| Mounting Plate Material | Powder-coated steel |
| Contact Plate Hardness | Rockwell C30 minimum |
| Contact Type | Single-pole, silver alloy contacts |
Frequently Asked Questions
Q: What makes of equipment is the YL 504736501 compatible with?
A: The YL 504736501 is compatible with Yale electric pallet jacks and walkies that require a traction or power contactor. Verify the voltage and current requirements of your specific equipment model before ordering.
Q: What material are the contacts on this contactor made of?
A: The YL 504736501 features silver alloy contacts, which provide reliable performance in traction and power circuit applications. These contacts offer good electrical conductivity and resistance to arcing in repetitive switching duty cycles.
Q: What part numbers does the YL 504736501 cross-reference?
A: The YL 504736501 supersedes and cross-references the following part numbers: 5047365-01, yt504736501, 504736501, and yl504736501. When ordering, verify that the part number on your equipment matches one of these references before purchasing.
Q: How do I know if the YL 504736501 is the right replacement part for my equipment?
A: To ensure compatibility, check that your equipment requires a traction or power contactor and is designed for 24vdc operation. Verify the part number on your equipment matches one of the cross-references listed for the YL 504736501.
Q: What are the key features of the YL 504736501 contactor?
A: The YL 504736501 is a 24vdc electromagnetic contactor designed for electric lift truck traction and power applications. It features single-pole operation with silver alloy contacts, making it suitable for use in various Yale electric equipment.
