Contactor for Electric Lift Truck - Fits Crown, Toyota
AL SW180-48
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

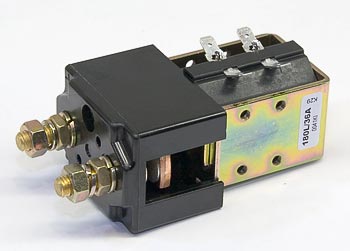

Albright SW180 series DC contactor, 36–48VDC, 150A continuous (200A resistive), for electric lift trucks, power distribution, and vehicle motors. Features M8 stud main terminals, >5 million mechanical cycles, and robust silver alloy contacts. Compatible with cross-reference numbers ALSW18048 and SW18048.
Specifications
Part Numbers & Compatibility
| Make | Crown, Toyota, Hyster, Yale, Raymond, Nissan, Mitsubishi, Linde, Jungheinrich, Clark, CAT, BT |
| Typical Applications | Electric vehicle motors and power distribution systems, including industrial lift trucks |
| Cross-Reference Part Numbers | ALSW18048, SW18048 |
| Manufacturer Part Number | SW180 |
| Cross Reference Part Numbers | ALSW18048, SW18048 |
Electrical Specifications
| Rated Contact Voltage | 36–48VDC |
| Rated Load Current | 150A continuous; 200A resistive only |
| Intermittent Current Rating | 275A at 30% duty, 235A at 40% duty, 210A at 50% duty, 195A at 60% duty, 180A at 70% duty (all values at 48V) |
| Rated Fault Current Breaking Capacity | 300A at 60V DC (resistive, no blowouts); 300A at 96V DC (resistive, blowouts); 1000A at 48V DC (no blowouts); 1000A at 96V DC (blowouts) |
| Typical Voltage Drop | 40 mV per pole across new contacts at 150A |
Additional Specifications
| Main Terminal Type | M8 stud |
| Contact Material | Robust silver alloy |
| Mechanical Cycles | Greater than 5 million |
Frequently Asked Questions
Q: Which makes and models is the AL SW180-48 compatible with?
A: The AL SW180-48 is compatible with Crown, Toyota, Hyster, Raymond, Nissan, Mitsubishi, Linde, Jungheinrich, Clark, CAT, and BT electric lift trucks. Always verify compatibility with your specific model before ordering.
Q: What materials are used to ensure durability in the AL SW180-48?
A: The AL SW180-48 is constructed with durable components designed for long-term use in demanding environments. It features robust silver alloy contacts that provide reliable performance and minimal contact voltage drop.
Q: How can I determine if the AL SW180-48 is the correct replacement part for my equipment?
A: To ensure you're selecting the right replacement, check your equipment's service manual or contact an authorized dealer. The AL SW180-48 is a widely used part for electric lift trucks, and cross-reference numbers include ALSW18048 and SW18048.
Q: What are the operating voltage and current specifiCATions for the AL SW180-48?
A: The AL SW180-48 operates across a 36VDC to 48VDC range and is rated for 150A continuous duty. It can handle up to 200A resistive load, with intermittent ratings varying based on duty cycle.
Q: How many times can the AL SW180-48 be switched on and off?
A: The AL SW180-48 is rated for more than 5 million mechanical switching cycles, making it suitable for frequent on-off cycling in lift trucks and other material-handling equipment.
Q: What type of terminals does the AL SW180-48 use?
A: The AL SW180-48 uses M8 stud main terminals, which are the standard for DC contactors in material-handling equipment. Ensure your wiring harness matches this terminal style before installation.
Q: Are there alternative part numbers for the AL SW180-48?
A: Yes, cross-reference part numbers for the AL SW180-48 include ALSW18048 and SW18048. These may appear in documentation for various electric lift truck brands.
