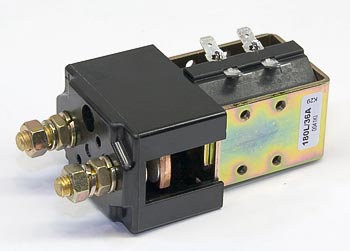

DC Contactor for Electric Lift Truck - Fits Albright, Toyota FB10P, FB14P, FB15P
AL SW180L-36
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
The Albright AL SW180L-36 is a heavy-duty DC contactor engineered for electric lift truck motor control. Rated at 36VDC or 48VDC coil voltage with 200A continuous current capacity, it features M8 main terminals and silver alloy contacts for superior conductivity and arcing resistance. Designed for demanding industrial vehicle applications requiring reliable multi-million cycle switching performance.
Specifications
Part Numbers & Compatibility
| Make | Albright, Toyota, Crown, Raymond, Hyster, Jungheinrich, Linde, Yale, Nichiyu, Nissan, Hyundai |
| Model | FB10P, FB14P, FB15P, FB18P, 8HBE30, 8HBE40, 8HBC30, CW20, CW25, CW30, R25S, R30S, R35S, H40FT, H50FT, J1.6Z, J1.8Z, J2.0Z, EFG220, EFG315, EFG225, CX20, CX25 |
| Manufacturer Part Number | AL SW180L-36 |
| Cross Reference Part Numbers | ALSW180-36, ALSW18036, SW18036 |
| Equivalent Part Numbers | SW180 series |
| Application | Electric lift truck motor control |
Electrical Specifications
| Coil Voltage | 36VDC or 48VDC nominal |
| Rated Contact Circuit Voltage | 6 to 80 VDC |
| Continuous Current Rating | 200A continuous |
| Peak Current Rating | 400A peak |
| Current Rating at 30% Duty Cycle | 365A |
| Current Rating at 40% Duty Cycle | 315A |
| Current Rating at 50% Duty Cycle | 285A |
| Current Rating at 60% Duty Cycle | 260A |
| Current Rating at 70% Duty Cycle | 240A |
| Voltage Drop at 150A | ≤40 mV |
| Rated Fault Current Breaking Capacity (5 ms) | 1000A at 48VDC (no blowouts); 1000A at 96VDC (with blowouts) |
Performance Specifications
| Typical Operating Time | ≤30 ms |
Additional Specifications
| Coil Power Consumption | 11 to 14 W |
| Dielectric Strength | 1000V AC at 50Hz for 1 minute |
| Main Terminal Type | M8 main stud terminals |
| Contact Material | Silver alloy contacts |
| Mechanical Life | Over 5,000,000 operations |
| Contact Design | Double breaking contacts |
Frequently Asked Questions
Q: Which electric lift truck brands is this part compatible with?
A: This part is compatible with Albright, Toyota, Crown, Raymond, Hyster, Jungheinrich, Linde, Yale, Nichiyu, Nissan, and Hyundai electric lift trucks. Verify your equipment model and nameplate voltage (36V or 48V system) before ordering to ensure correct fitment.
Q: What material is used for the contacts and how does it affect performance?
A: The contactor features silver alloy contacts that provide superior electrical conductivity and arcing resistance. This construction ensures reliable performance through thousands of motor control and load-switching cycles in industrial applications.
Q: How long can I expect this contactor to last under normal operating conditions?
A: The AL SW180L-36 is engineered for heavy-duty applications and delivers over 5,000,000 mechanical operations. The double breaking contact design and welded-resistant material resist erosion and contact welding, maintaining reliable switching performance through extended service intervals.
Q: What should I do if the contactor is not functioning properly?
A: If the contactor does not pull in at rated voltage or exhibits sluggish operation, inspect terminal connections for corrosion, oxidation, or looseness. Clean accessible terminals with electrical contact cleaner if oxidation is visible. Contact us for replacement evaluation if needed.
Q: Are there any cross-reference part numbers for this contactor?
A: Cross-reference part numbers include ALSW180-36, ALSW18036, and SW18036. Equivalent parts are listed under the SW180 series. The manufacturer part number is AL SW180L-36 and the part number is SW180L-36. Cross-verify coil voltage (36V or 48V) and current ratings when sourcing alternatives.
