Product Description

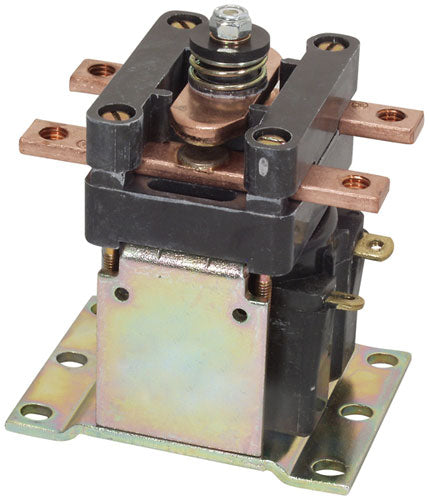

CONTACTOR (36 VOLT)
Specifications
Physical Specifications
| Coil Voltage | 36V DC |
| Contact Type | Heavy-duty electromagnetic contacts |
| Primary Application | Electric forklift and lift truck motor control |
| Function | Main battery-to-motor power relay switch |
Compatibility
| Compatible Voltage Systems | 36V DC systems only (do not substitute 24V or 48V contactors) |
Frequently Asked Questions
Q: What does a 36 volt contactor do in an electric lift truck?
A: A contactor (5800131-32) is an electromagnetic relay that switches high current power from the battery to the lift motor or hydraulic pump motor. It acts as the main power control switch, handling currents that would be too large for manual switches. The contactor coil receives a low-power signal from the control circuit and closes heavy electrical contacts to energize the motor.
Q: Which electric lift truck models are compatible with the 5800131-32 contactor?
A: The 5800131-32 is a 36 volt contactor used in Yale, Toyota, Crown, Raymond, and Hyster electric forklift models with 36V battery systems. This contactor is specifically designed for the 36VDC electrical specification. Do not substitute 24V or 48V contactors, as voltage mismatch will cause coil failure or electrical system damage.
Q: What are the electrical specifications for this contactor?
A: The 5800131-32 is rated for 36 volt DC coil voltage. Amperage ratings and contact configurations are specified in the product data sheet based on the motor current requirements it controls. Common contactors handle 100 to 300 amperes depending on the lift truck motor size and type. Verify coil voltage and current rating match your equipment electrical schematic before ordering.
Q: What causes a contactor to fail?
A: Contactors fail from arcing damage to internal contacts, coil burnout from sustained high current, or mechanical wear of the contact plunger. Voltage spikes from motor startup or brake release can damage the coil insulation. Water contamination in the electrical enclosure causes corrosion on contact surfaces. Repeated shock loads from aggressive acceleration wear the plunger mechanism.
Q: What are the symptoms of a failing contactor?
A: A failing contactor produces clicking or chattering sounds when activated. The motor may not respond immediately to the control lever, or power may drop out intermittently during operation. You might notice arcing or sparking visible through ventilation holes in the electrical enclosure. The lift function may become sluggish as contact resistance increases. Complete contactor failure results in loss of motor power and inability to lift or lower loads.
Q: What is the typical service life of the 5800131-32 contactor?
A: A properly functioning contactor in moderate-use electric lift trucks lasts 5 to 8 years or 5000 to 10000 operating hours. Contactors in heavy-duty or high-cycle applications may require replacement every 2 to 3 years. Environmental factors such as moisture and extreme temperature reduce service life significantly. Regular maintenance of the battery charging system and voltage regulation extends contactor lifespan.
