Product Description

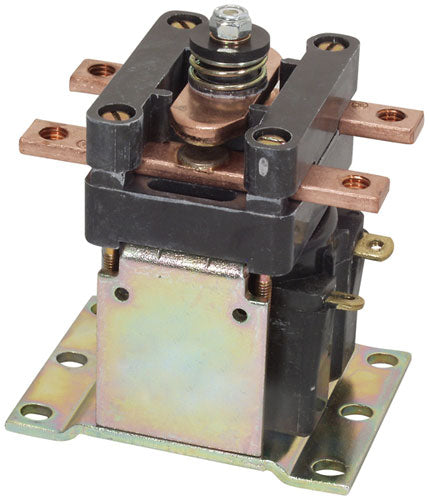

The GE 107300AH142XN contactor is designed for 36VDC electric lift truck applications, supporting continuous 300A operation, commonly used in GE EV100 controller systems. This model features SPNO contacts, a heavy-duty copper-silver alloy contact system, and engineered coil voltage compatibility with 36VDC traction circuits. Cross-compatible with select GE and equivalent electric truck controllers; supersedes variants such as 107300AH142XS.
Specifications
Dimensional Specifications
| Terminal Type | Ring lug terminals for main circuit; 1/4 inch spade for coil circuit |
Electrical
| Contact Circuit Voltage Rating | 36VDC nominal |
| Rated Operational Current | 300A continuous at 36VDC; 48VDC intermittent |
| Coil Voltage | 36VDC |
| Dielectric Strength | 1000VAC at 50Hz for 1 minute |
| Coil Power Requirement | 11W to 15W at rated voltage |
Part Numbers
| Manufacturer Part Number | 107300AH142XN |
| OEM Part Number | GE 107300AH142XN |
| Cross-Reference Part Numbers | Supersedes 107300AH142XS; equivalent to GE EV100 36/48V contactor |
| Compatible Models | Suitable for GE EV100 36V/48V electric lift truck controllers |
Frequently Asked Questions
Q: What is the P107300AH142XN contactor rated for?
A: The P107300AH142XN (GE 107300AH142XN) is a 36VDC heavy-duty contactor rated for continuous 300A operation. It features SPNO (single pole normally open) contacts with copper-silver alloy contact system designed for high-current traction circuits in electric lift trucks.
Q: Which electric lift truck systems is the P107300AH142XN compatible with?
A: The P107300AH142XN is suitable for GE EV100 36V and 48V electric lift truck controllers. It is cross-compatible with equivalent GE electric truck controllers and supersedes variant 107300AH142XS. Verify your controller model and voltage rating before ordering.
Q: What are the contact specifications of the P107300AH142XN?
A: The P107300AH142XN features a heavy-duty copper-silver alloy contact system engineered for 36VDC traction circuit voltage compatibility. The contact circuit voltage rating is 36VDC nominal. It is designed for continuous duty operation in electric truck propulsion and steering circuits.
