36VDC Contactor for Electric Lift Truck - Fits Crown, Toyota
SW180B-265L
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

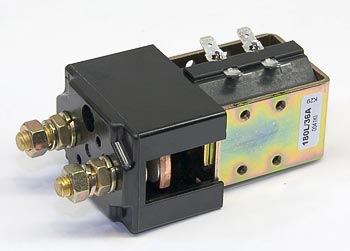

36VDC Albright SW180B-265L series DC contactor for electric lift trucks. Single pole, single throw, normally open configuration with 150A continuous and 400A intermittent current rating. Features high-durability, weld-resistant silver alloy contacts with magnetic blowout arc suppression. M8 stud main terminals accommodate mounting bracket and optional auxiliary contacts for expanded control capabilities. Direct replacement compatible across 36VDC lift truck platforms.
Specifications
Part Numbers & Compatibility
| Make | Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark |
| Part Number | SW180B-265L |
| Cross-Reference Part Numbers | SW180B-26L, SW180B-27L, SW180B-285, SW180B-28L, SW180B-845 |
| Cross Reference Part Numbers | SW180B-26L, SW180B-27L, SW180B-285, SW180B-28L, SW180B-845 |
Electrical Specifications
| Nominal Coil Voltage | 36VDC |
| Continuous Current Rating | 150A at 36VDC |
| Intermittent Current Rating (Main Circuit) | 400A intermittent at 36VDC |
| Intermittent Current Rating (30% Duty) | 275A at 30% duty cycle |
| Intermittent Current Rating (40% Duty) | 235A at 40% duty cycle |
| Intermittent Current Rating (50% Duty) | 210A at 50% duty cycle |
| Typical Voltage Drop (new contacts at 150A) | 40 mV per pole |
Additional Specifications
| Configuration | Single pole, single throw, normally open (SPST-NO) |
| Contact Material | High-durability, weld-resistant silver alloy |
| Arc Suppression | Magnetic blowout |
| Main Terminal Type | M8 stud |
| Mounting Bracket | Included |
| Auxiliary Contacts | Optional |
| Mechanical Durability | 5+ million mechanical cycles (normal duty) |
| Supersedes | SW180B-27L |
| Direct Replacement For | SW180B-26L |
Frequently Asked Questions
Q: Which lift truck models is this part compatible with?
A: This part is compatible with 36VDC electric lift trucks from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, and Clark.
Q: What materials are used to ensure durability?
A: The part features weld-resistant silver alloy contacts and magnetic blowout arc suppression to enhance durability.
Q: What are the key features of this part?
A: This part includes M8 stud main terminals and optional auxiliary contacts for extended functionality.
Q: What are the current ratings for this part?
A: This part is rated 150A continuous and 400A intermittent current at 36VDC for electric lift truck applications.
Q: What is the coil voltage and configuration?
A: The part features a nominal 36VDC coil voltage in a single pole single throw normally open configuration designed for DC motor control.
Q: How long can this part last under normal conditions?
A: This part is engineered for high-durability operation exceeding 5 million mechanical cycles under normal duty cycle conditions.
Q: What other parts does this part replace or cross-reference?
A: This part cross-references to SW180B-26L, SW180B-27L, SW180B-285, SW180B-28L, and SW180B-845. It replaces SW180B-26L and supersedes SW180B-27L.
