Product Description

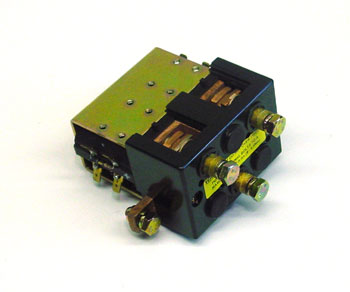

Yale YL 520293802 is an OEM forward/reverse contactor for electric lift trucks, designed for traction motor circuit switching. Features double contacts, silver alloy material, heavy-duty screw terminals, and compatibility with standard Yale mounting. Rated for high electrical endurance and continuous duty at 24VDC typical application voltage.
Specifications
Electrical Specifications
| Control Function | Power switching for traction motor forward/reverse circuits |
Material & Construction
| Frame Material | Molded composite with brass terminal inserts |
Mechanical Specifications
| Connection Terminal Type | Heavy-duty screw terminals for power and control wires |
Part Numbers & Compatibility
| Manufacturer Part Number | YL 520293802 |
Frequently Asked Questions
Q: What is the YL 520293802 contactor designed to control?
A: The YL 520293802 is a forward/reverse contactor that switches power to the traction motor circuit in Yale electric lift trucks. It provides directional control by routing current through motor windings in opposite polarity, allowing the truck to move forward or backward. It is rated for 24VDC operation and continuous duty in material handling service.
Q: What are the terminal types and connection requirements?
A: The YL 520293802 features heavy-duty screw terminals for secure power and control wire connections. Main power terminals accept battery positive and negative leads plus motor phase wires. Control terminals receive low-voltage logic signals from the direction switch. Use appropriately sized terminals and ensure connections are tight to prevent voltage drop and intermittent engagement.
Q: What is the contact material and why does it matter?
A: This contactor uses silver alloy contacts, which provide superior electrical conductivity and arc resistance compared to base metals. Silver alloy contacts maintain lower contact resistance under high current, reducing heat generation and extending service life. They also resist erosion from repeated arcing, which is critical for forward/reverse duty cycling.
Q: What frame material is used and what protection does it provide?
A: The YL 520293802 housing is molded composite with brass terminal inserts. The composite material provides electrical insulation, mechanical durability, and corrosion resistance. Brass inserts ensure reliable screw terminal engagement without stripped threads. This design tolerates vibration, moisture, and thermal cycling in forklift environments.
Q: How do I diagnose a failed forward/reverse contactor?
