Product Description

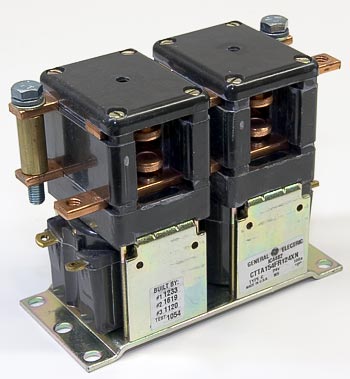

The GE 158FR124XN is a double pole, double throw (DPDT) contactor rated for 150A continuous duty at 24VDC, designed for GE EV-100 lift truck control systems. It replaces model IC4482CTTA158FR124XN, offers screw terminals with VDE-compliant protection, mounts via panel or DIN rail, and supports up to six auxiliary contact blocks.
Specifications
Electrical
| Coil Voltage | 24VDC |
| Contact Arrangement | 2 Form C (DPDT) |
| Current Rating | 150A continuous duty |
| Electrical Endurance | AC-1: 200,000 operations at rated current |
| Rated Insulation Voltage | 600V AC (control circuit) |
Mechanical
| Service Life | 300,000 mechanical cycles minimum |
| Mounting Type | Panel or DIN rail |
| Terminal Type | Screw terminals with VDE-compliant protection |
| Auxiliary Contact Support | Supports up to six auxiliary contact blocks |
Part Numbers
| Manufacturer Part Number | 158FR124XN |
| Cross-Reference Part Numbers | Supersedes IC4482CTTA158FR124XN |
| System Type | GE EV-100 |
