Product Description

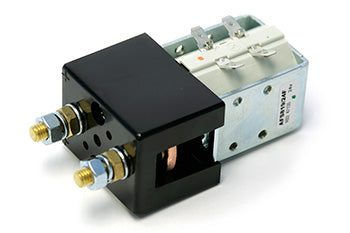

The Albright SW180-24 is a high-speed industrial contactor designed for demanding electric lift truck and motor control applications. Engineered with durable silver alloy contacts rated for 150A interrupted and 200A uninterrupted duty, this single-pole single-throw contactor features M8 stud terminals and 24VDC coil operation. With mechanical life exceeding five million cycles and proven performance across Crown, Toyota, Raymond, Yale, and Hyster equipment, the SW180-24 delivers reliable switching and motor protection in high-frequency industrial environments.
Specifications
Electrical
| Coil Voltage | 24VDC |
| Rated Interrupted Duty | 150A |
| Rated Uninterrupted Duty | 200A |
| Intermittent Current Ratings | 275A at 30% duty, 235A at 40% duty, 210A at 50% duty, 195A at 60% duty, 180A at 70% duty |
| Rated Fault Current Breaking Capacity (UL583, 5ms) | 1000A at 48VDC (no blowouts), 1000A at 96VDC (with blowouts) |
| Coil Power Dissipation | 10–15W (continuous), 15–30W (prolonged), 30–40W (intermittent), 40–50W (highly intermittent) |
| Typical Pull-In Time (N/O to Close) | 30 ms |
| Typical Drop-Out Time (N/O to Open) | 8 ms without suppression, 60 ms with diode, 25 ms with diode and resistor |
| Drop-Out Voltage Range | 10–25% of Us |
Physical & Mechanical
| Terminal Type | M8 stud terminals |
| Coil Connection Type | 6.3 mm spade coil connections |
| Contact Material | Durable silver alloy contacts |
| Mechanical Life | Exceeding five million cycles |
Application
| Intended Application | Electric lift truck and industrial motor control applications |
| Compatible Equipment Categories | Electric forklifts, pallet jacks, stackers, order pickers, reach trucks |
Part Numbers
| Manufacturer Part Number | SW180-24 |
| Alternate Part Number | AL SW180-24 |
Frequently Asked Questions
Q: What are the current ratings for the AL SW180-24 at various duty cycles?
A: At 30 percent duty cycle the AL SW180-24 handles 275A, at 40 percent it handles 235A, at 50 percent it handles 210A, at 60 percent it handles 195A, and at 70 percent it handles 180A. These are intermittent duty ratings. Verify your application duty cycle matches these specifications.
Q: What is the fault breaking capacity for the AL SW180-24?
A: The AL SW180-24 is rated for 1000A fault breaking capacity at 48VDC without blowouts and 1000A at 96VDC (with optional magnetic blowout configuration). This high fault rating protects motor circuits from damage.
Q: What terminal configuration does the AL SW180-24 have?
A: The AL SW180-24 features M8 stud terminals for main power connections and 6.3 mm spade coil connections. These standard terminals fit Crown, Toyota, Raymond, Yale, and other electric lift truck models.
Q: What coil voltage is the AL SW180-24 rated for?
A: The AL SW180-24 operates on 24VDC coil voltage. This is a common voltage standard in electric lift trucks and industrial motor control applications. Verify your equipment requires 24VDC before ordering.
Q: What is the mechanical durability of the AL SW180-24?
A: The AL SW180-24 is rated for five million mechanical cycles with durable silver alloy contacts. This high cycle rating supports frequent motor switching in industrial lift trucks and material handling equipment.
