Product Description

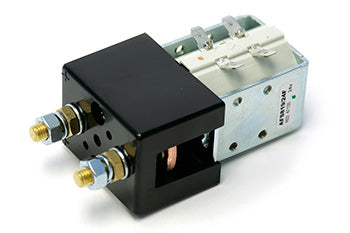

Albright SW180-4 DC contactor, 24VDC coil, single pole single throw, rated for 150A interrupted and 200A uninterrupted current in electric lift truck and industrial vehicle applications. M8 main terminals, 6.3mm spade coil connections, and silver alloy contacts for high speed switching.
Specifications
Electrical
| Coil Voltage | 24VDC |
| Intermittent Current Rating (30% Duty) | 275A |
| Intermittent Current Rating (50% Duty) | 210A |
| Intermittent Current Rating (70% Duty) | 180A |
| Rated Fault Current Breaking Capacity (With Blowouts) | 1000A at 96VDC |
| Rated Fault Current Breaking Capacity (No Blowouts) | 1000A at 48VDC |
| Typical Voltage Drop per Pole (at 150A) | 40 mV |
| Coil Voltage Range (Family) | 6VDC to 240VDC (24VDC for this model) |
| Auxiliary Switch Capability (Resistive Load) | 5A at 24VDC, 2A at 48VDC, 0.5A at 240VDC |
| Duty Cycle Options | Continuous, 30% to 70% intermittent |
Material & Construction
| Enclosure Material | Phenolic molding with steel hardware |
Part Numbers
| Manufacturer Part Number | SW180-4 |
| OEM Part Number | AL SW180-4 |
Frequently Asked Questions
Q: What are the current ratings for the AL SW180-4 contactor?
A: The AL SW180-4 is rated for 150A interrupted and 200A uninterrupted current in standard applications. For intermittent duty cycles: 275A at 30% duty, 210A at 50% duty, and 180A at 70% duty. The unit can break up to 1000A fault current at 96VDC with magnetic blowouts installed.
Q: What coil voltage does the AL SW180-4 require?
A: The AL SW180-4 operates on 24VDC coil voltage. It uses 6.3mm spade connections for the coil terminals, making it compatible with standard 24V control systems on electric lift trucks and industrial vehicles.
Q: What terminal types does the AL SW180-4 use?
A: The main circuit terminals are M8 studs, which are standard on most electric lift truck contactors. The coil connections are 6.3mm spades for compatibility with common DC control harnesses.
Q: What contact material is used in the AL SW180-4?
A: The contactor features silver alloy contacts designed for high-speed switching and reliable conductivity in DC circuits. Silver alloy contacts provide superior arc resistance and lower contact resistance compared to standard copper contacts.
Q: Is the AL SW180-4 suitable for electric lift truck applications?
A: Yes. The SW180-4 is engineered for electric lift trucks, reach trucks, and other DC industrial vehicles requiring solid-state switching at 24VDC. Verify your equipment uses 24V coil control and operates within the rated current parameters.
