Product Description

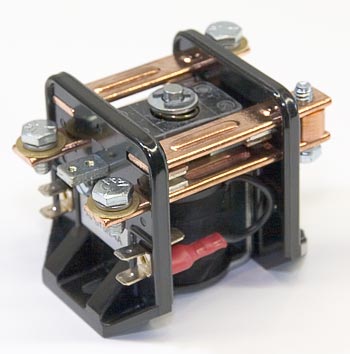

The Toyota TO 00591-30689-81 is a 24VDC, 75A continuous duty contactor designed as an OEM component for Toyota electric lift trucks. Engineered for panel mounting, it features stud terminals for power circuit connections, supports heavy-duty motor current switching, and is constructed with thermal-resistant bodies and silver alloy contacts to ensure operational reliability in industrial truck applications.
Specifications
Electrical
| Control Coil Voltage | 24VDC nominal |
| Main Current Rating | 75 amperes at 24VDC |
| Application Category | DC motor circuit (electric forklift drive and lift power) |
Part Numbers
| OEM Part Number | 00591-30689-81 |
| Manufacturer Part Number | TY00591-30689-81 |
| Toyota Part Number | TO 00591-30689-81 |
Frequently Asked Questions
Q: What are the specifications of the TO 00591-30689-81 contactor?
A: The TO 00591-30689-81 is a 24 volt DC, 75 ampere continuous duty contactor for Toyota electric lift trucks. It features panel mounting with stud terminals for power circuit connections. The 24VDC nominal control coil and 75A main current rating support heavy-duty motor switching in drive and lift circuits.
Q: What is the difference between the TO 00591-30688-81 and TO 00591-30689-81?
A: The primary difference is voltage. The TO 00591-30688-81 is 12V, while the TO 00591-30689-81 is 24VDC. Both are rated for 75A continuous duty. Use only the correct voltage for your truck system. Installing the wrong voltage will cause immediate coil failure.
Q: Which Toyota electric lift trucks use the 24VDC 75A contactor?
A: The TO 00591-30689-81 fits Toyota electric lift trucks with 24VDC electrical systems and 75A motor circuits. Verify your truck uses 24V power before ordering. Check the original contactor part number or truck documentation to confirm compatibility.
Q: What are stud terminals and how do they work?
A: Stud terminals are threaded posts on the contactor that secure power connections using bolts and nuts. They provide secure, vibration-resistant connections in industrial applications. The stud design ensures reliable contact under high-amperage motor switching.
Q: What makes the TO 00591-30689-81 suitable for continuous duty?
A: The contactor uses thermally-resistant construction and silver alloy contacts rated for sustained 75A switching. Continuous duty means it can operate repeatedly without rest periods in drive and lift motor circuits. Temperature-resistant materials prevent thermal damage under extended high-current loads.
Q: What is the typical service life of the TO 00591-30689-81?
A: Under normal electric lift truck duty, expect 3-5 years of service. Heavy-use applications with frequent switching may reduce lifespan. Monitor for signs of coil damage, terminal corrosion, or sluggish switching response. Silver alloy contacts gradually erode with repeated arcing cycles.
