Product Description

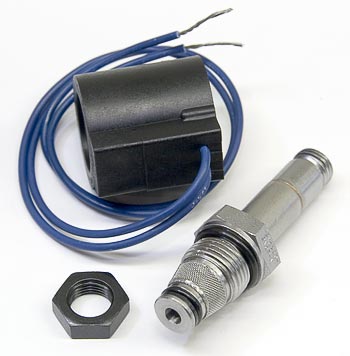

Crown CR 084344-001 solenoid valve for electric lift truck applications. Features 24VDC control voltage, brass body, NBR seals, 3/4 inch NPT hydraulic port, and IP65 protected coil. Designed for reliability in hydraulic control systems of Crown pallet trucks.
Specifications
Electrical
| Control Voltage | 24VDC nominal |
| Connector Type | ISO 4400 / EN 175301-803, Form A (spade plug) |
| Electrical Enclosure Protection | Moulded IP65 (EN 60529) housing |
Hydraulic
| Valve Type | 2-way, normally closed solenoid valve |
| Maximum Pressure Rating | 80 PSI |
| Flow Rate | 4.8 Kv (approx. 4.8 m³/h at 1 bar) |
| Seal Material | NBR (nitrile rubber) |
Material & Construction
| Body Material | Forged brass |
| Core Material | Stainless steel |
| Spring Material | Stainless steel |
| Disc & Poppet Material | NBR (nitrile rubber) |
Part Numbers
| OEM Part Number | CR 084344-001 |
Frequently Asked Questions
Q: What are the electrical and material specifications of the CR 084344-001 solenoid valve?
A: The CR 084344-001 is a 24VDC solenoid valve with brass body, NBR seals, moulded IP65 electrical housing (EN 60529), and ISO 4400 / EN 175301-803 Form A spade plug connector. Maximum pressure rating is 80 PSI with 4.8 Kv flow rate. It functions as a 2-way normally closed solenoid valve in Crown hydraulic systems.
Q: What is the hydraulic port size on the CR 084344-001?
A: The CR 084344-001 features a 3/4 inch NPT (National Pipe Taper) hydraulic port for connection to Crown lift truck hydraulic lines. Verify port size matches your equipment manifold before installation to prevent leakage or fitting mismatch.
Q: What does IP65 protection rating mean for the CR 084344-001 coil?
A: IP65 (Ingress Protection 65) means the CR 084344-001 coil is protected against dust ingress and low-pressure water jets, suitable for warehouse and outdoor pallet jack environments. The moulded housing prevents moisture, washdown fluid, and material dust from damaging the solenoid coil and connector.
Q: Is the CR 084344-001 solenoid valve compatible with Crown PE 3000 and PE 4000 series lifts?
A: The CR 084344-001 is a Crown OEM variant engineered for specific Crown electric lift truck models. Verify your equipment matches the CR 084344-001 specification; do not assume cross-compatibility across PE series models without confirming part number and control system requirements.
Q: What does normally closed mean for the CR 084344-001 valve?
A: Normally closed means the CR 084344-001 valve blocks hydraulic flow when de-energized (no 24VDC signal). When the solenoid coil receives 24VDC current, the valve opens to allow controlled fluid movement in the lift truck hydraulic circuit. This design prevents uncontrolled load drift during power loss.
