Product Description
Solenoid Valve
Frequently Asked Questions

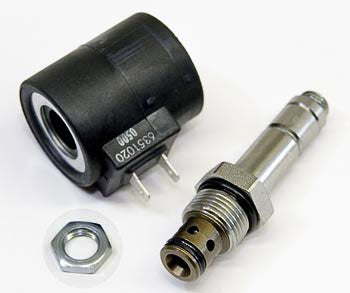

Q: What is the CR 088280-001 solenoid valve used for?
A: The CR 088280-001 is a solenoid valve designed for electric lift truck hydraulic systems. It provides 2-way, normally closed operation with direct acting control for pressure regulation and directional flow control in Crown electric pallet jacks and lift trucks.
Q: What are the operating specifications for the CR 088280-001?
A: This solenoid valve is rated for 24VDC operation with power consumption of approximately 0.7 watts DC. It is designed to handle working pressures from 0 to 0.8 MPa with a maximum pressure rating of 1.2 MPa. The activation time is less than 0.05 seconds for responsive hydraulic control.
Q: What materials are used in the CR 088280-001 seals?
A: The CR 088280-001 uses NBR (nitrile rubber) seal material, which provides compatibility with hydraulic oils and water-based fluids commonly used in material handling equipment. NBR seals offer good resistance to heat and wear in industrial applications.
Q: What is the port connection size for the CR 088280-001?
A: The CR 088280-001 features G 1/8 ISO port threading, which is a standard connection size for solenoid valves in compact hydraulic systems found on electric lift trucks and pallet jacks.
Q: What is the protection rating of the CR 088280-001 solenoid coil?
A: The solenoid coil carries an IP65 protection rating per DIN40050, which means it is dust-tight and protected against water jets from any direction. This rating is suitable for warehouse and material handling environments where moisture exposure is possible.
