Product Description

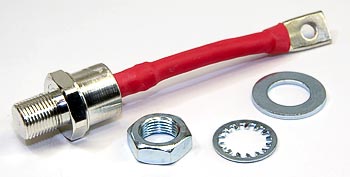

Diode
Frequently Asked Questions
Q: What is the CR 101567 diode used for in Crown electric lift trucks?
A: The CR 101567 is a diode component in the electrical control system of Crown electric lift trucks. Diodes function as one-way valves for electrical current, protecting circuits from voltage spikes, reverse polarity, and parasitic drain. This specific diode is part of the battery management, motor control, or charger interface circuit depending on your Crown model.
Q: Is the CR 101567 diode compatible with other lift truck brands?
A: The CR 101567 is a Crown OEM electrical component. No documented cross-reference part numbers for other manufacturers have been identified. This diode is integrated into Crown-specific electrical circuits and should not be assumed compatible with Toyota, Yale, Raymond, Hyster, or other lift truck brands without technical verification.
Q: When does the CR 101567 diode typically fail or require replacement?
A: Diodes are solid-state components with extended service life under normal operating conditions. The CR 101567 may fail if exposed to extreme voltage transients, prolonged overheating, manufacturing defect, or electrostatic discharge. Failure symptoms typically include electrical circuit malfunction, battery charging issues, or control system faults. Replacement is necessary only when diagnostic testing confirms diode failure.
Q: What electrical specifications does the CR 101567 diode have?
A: The CR 101567 diode specifications include forward voltage drop, reverse breakdown voltage, and current rating suitable for Crown electric lift truck electrical systems. Exact specifications depend on the circuit application and equipment model. Detailed electrical data is available in Crown service documentation or upon request with your lift truck model and serial number.
Q: Can the CR 101567 diode be tested or must it be replaced if suspected of failure?
A: The CR 101567 can be tested using a multimeter set to diode test mode to verify forward and reverse conduction. A properly functioning diode conducts current in one direction and blocks it in the reverse direction. If testing confirms failure or if component-level repair is not practical, the diode must be replaced. Verify the part number and orientation before installation to avoid circuit damage.
