Crown

CR 109131-1

$88.74 off

CR 109131-1

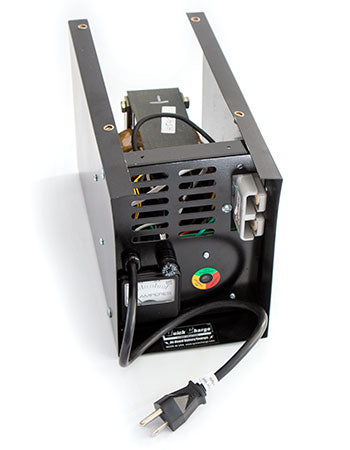

Crown 24VDC battery charger, 15A nominal output

$576.80
$576.80 $665.54
In stock
⚠️ Compatibility Recommended Before Purchase
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.

Before ordering, confirm:
  • Truck make and model
  • Serial number
  • Battery voltage
  • Battery type (lead-acid vs lithium)
  • Connector style

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
Battery Chargers Crown Electric Lift Truck Parts Gpw Walkie

Compatibility

Make Crown, Yale
Model Yale 2415B1, Yale ET241516B1

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

OEM Crown battery charger part number CR 109131-1; 24VDC output, 15A nominal current, designed for Crown electric lift trucks. Features 120V single phase input, on-board format, steel enclosure with powder coat finish, and Micro-USB interface for software customization. Cross-references: CR109131-001, CR109131001, 109131001.

Specifications

Electrical
Output Voltage24VDC
Input Voltage120VAC single phase
Output Current15A nominal
Power ConnectorsRing terminals
Interface PortMicro-USB for algorithm installation and software upgrade
Material & Construction
Enclosure MaterialSteel, powder coat finish
Part Numbers & Compatibility
OEM Part NumberCR 109131-1
Manufacturer Part NumberCR109131-001
Cross-Reference Part NumbersCR109131-001, CR109131001, 109131001

Frequently Asked Questions

Q: What is the output specification for the CR 109131-1 battery charger?
A: The CR 109131-1 delivers 24VDC output at 15A nominal current. It accepts 120VAC single-phase input and features ring terminal power connectors. The unit is housed in a steel enclosure with powder coat finish and includes a Micro-USB interface for algorithm customization and software updates.

Q: Which Crown electric lift trucks does the CR 109131-1 charger fit?
A: The CR 109131-1 is designed for Crown electric lift trucks requiring 24VDC charging systems. Cross-reference part numbers CR109131-001, CR109131001, and 109131001 indicate compatibility across multiple Crown platforms. Verify your equipment nameplate voltage before ordering to ensure correct fitment.

Q: What are the alternative part numbers for the CR 109131-1?
A: Cross-references for CR 109131-1 include CR109131-001, CR109131001, and 109131001. These designations all refer to the same OEM Crown charger specification and can be used interchangeably when ordering or referencing technical documentation.

Q: Can the CR 109131-1 be customized for different charging algorithms?
A: Yes. The Micro-USB interface on the CR 109131-1 allows for on-board software customization and algorithm updates. This feature enables fleet maintenance operations to adjust charging profiles for specific battery types or operational requirements without replacing the charger unit.
