Product Description

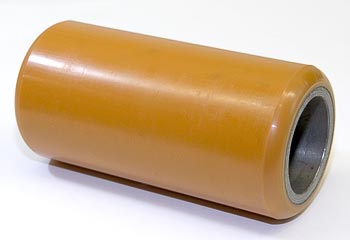

Poly load wheel
Specifications
Product Overview
| Product Type | Polyurethane Load Wheel |
Physical Specifications
| Tread Width Options | 4.25 inch (CR 116-AS-XL) or 6.5 inch (CR 116-AS-A) |
| Material - Core | Cast iron |
| Material - Tread | Polyurethane, 95A durometer |
| Bearing Type | Sealed 6205-2RS double-shielded |
| Bearing Bore ID | 25 mm |
| Surface Type | Hard floor and level surfaces |
Compatibility
| Wheel Diameter | 3.25 inches |
| Application | Crown PE 3000, PE 4000, PE 4500 series electric pallet jacks and lift trucks |
Frequently Asked Questions
Q: What is the CR 116-AS load wheel?
A: The CR 116-AS is a polyurethane load wheel designed for Crown pallet jacks and electric lift trucks. It features a cast iron core with 95A polyurethane tread and sealed bearings for smooth operation under load.
Q: What are the dimensions of the CR 116-AS?
A: The CR 116-AS has a 3.25 inch diameter with multiple tread width options available. Standard assembly models include 6.5 inch or 4.25 inch tread widths depending on the variant (CR 116-AS-A or CR 116-AS-XL).
Q: Which Crown equipment models does the CR 116-AS fit?
A: The CR 116-AS is compatible with Crown PE 3000, PE 4000, and PE 4500 series pallet jacks and electric drive units. Verify your specific model and riser assembly configuration before ordering.
Q: What bearing type is used in the CR 116-AS?
A: The CR 116-AS uses sealed 6205-2RS bearings with a 25 mm bore ID, providing sealed protection against contaminants and extending wheel life in material handling environments.
Q: How long does the CR 116-AS polyurethane tread last?
A: The 95A polyurethane tread is durable and designed for extended warehouse use on hard, level surfaces. Wheel lifespan depends on load, frequency of use, and floor conditions. Inspect wheels periodically for wear and replace when tread depth becomes insufficient.
Q: Can I use the CR 116-AS on different floor types?
A: The CR 116-AS is optimized for hard, level floors such as concrete or sealed surfaces. Performance on uneven, textured, or soft surfaces may be reduced. Verify compatibility with your specific floor conditions.
