Product Description

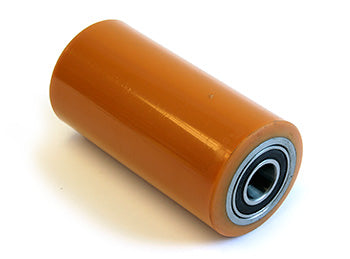

Crown CR 116-AS-A poly load wheel assembly with 3.25 inch diameter, 6.5 inch tread width, and 25 mm bore. Constructed with a cast iron core, 95A polyurethane tread, and dual 6205-2RS bearings. Direct replacement for Crown 100462, 100461, and CR100462. Compatible with PE 3000, PE 4000, and PE 4500 series pallet jack and drive units.
Specifications
Wheel Specifications
| Diameter | 3.25 inch |
| Tread Width | 6.5 inch |
| Bore | 25 mm |
Material
| Wheel Material | Premium cast iron core with 95A Shore A polyurethane tread |
| Polyurethane Hardness | 95 Shore A |
Bearing Assembly
| Bearings | Dual 6205-2RS sealed bearings |
Part Numbers
| Part Number | CR 116-AS-A |
| Manufacturer Part Number | 100462 |
| Cross-Reference Part Numbers | 100461, CR100462, 3VCR116AS |
Compatibility
| Compatible Equipment | Crown PE 3000 Series (9 and 10 inch fork riser assemblies, single wheel), Crown PE 4000 Series, Crown PE 4500 Series |
| Application | Load wheel for electric pallet jacks, material handling operations |
Frequently Asked Questions
Q: What is the CR 116-AS-A assembly?
A: The CR 116-AS-A is a complete poly load wheel assembly for Crown PE series pallet jacks. It includes a cast iron core wheel with 95A polyurethane tread, dual sealed 6205-2RS bearings, and a 25 mm bore, ready for direct installation.
Q: What are the exact dimensions of the CR 116-AS-A?
A: The CR 116-AS-A has a 3.25 inch outer diameter, 6.5 inch tread width, and 25 mm bore ID. These dimensions make it compatible with Crown PE 3000, PE 4000, and PE 4500 series equipment with riser assemblies.
Q: Which Crown equipment models is the CR 116-AS-A designed for?
A: The CR 116-AS-A is a direct fit for Crown PE 3000 Series with 9 inch and 10 inch fork riser assemblies (single wheel position), Crown PE 4000 Series, and Crown PE 4500 series pallet jacks. Confirm your model and serial number before ordering.
Q: What OEM part numbers does the CR 116-AS-A replace?
A: The CR 116-AS-A is a direct replacement for Crown OEM part number 100462 and cross-references 100461 and CR100462. It also supersedes the older CR100462 designation.
Q: What material properties does the 95A polyurethane tread offer?
A: The 95A polyurethane provides good load capacity, wear resistance, and grip on typical warehouse floors. The cast iron core ensures durability under sustained load, making this wheel suitable for regular duty in material handling operations.
Q: What equivalent part numbers should I know about?
A: The CR 116-AS-A is equivalent to Crown part number 3VCR116AS and is listed under OEM designation CR 116-AS-A. When cross-referencing, confirm bearing type and bore diameter match your equipment.
