Crown Electric Lift Truck Charger
CR 120202-003
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

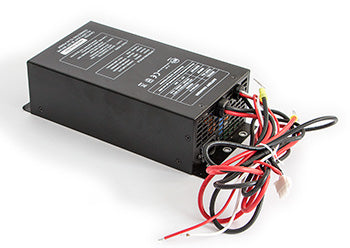

Crown OEM charger (CR 120202-003) engineered for electric lift truck applications. Features regulated 24VDC, 20A output, 120VAC input, onboard monitoring, micro-USB software interface, configurable charge profiles, and universal mounting bracket. No cross-reference part numbers are available. Constructed with powder coated steel housing for durability.
Specifications
Part Numbers & Compatibility
| Make | Crown |
| Manufacturer Part Number | CR 120202-003 |
| Part Number | CR 120202-003 |
| Cross Reference Part Numbers | None available |
Electrical Specifications
| Input Voltage | 120VAC single-phase |
| Output Current | 20A DC continuous |
| Battery Monitoring | Onboard monitoring of charge stage, amp hours returned, cell voltage |
| Configurable Charge Profiles | Yes |
Additional Specifications
| Power Connectors | Ring terminals |
| Alarm Monitoring | Integrated alarms for critical voltage, current, and polarity protection |
| Enclosure Material | Powder coated steel cabinet |
| Charging Efficiency | Up to 93% at rated load |
| Micro USB Software Interface | Yes |
| Universal Mounting Bracket | Yes |
Frequently Asked Questions
Q: What are the electrical specifications of the CR 120202-003 charger?
A: The CR 120202-003 accepts 120VAC single-phase input and outputs 24VDC regulated at 20 amps continuous. Power connections are ring terminal connectors, and the unit includes onboard monitoring of charge stage, amp hours returned, and cell voltage.
Q: What equipment is the CR 120202-003 compatible with?
A: The CR 120202-003 is designed for Crown electric lift trucks and pallet jacks requiring 24VDC, 20A charging. Verify your equipment voltage and amperage requirements before ordering.
Q: What is the housing material of the CR 120202-003?
A: The CR 120202-003 is constructed with a powder coated steel housing for durability and corrosion resistance in material handling environments.
Q: Does the CR 120202-003 have a software interface?
A: Yes, the CR 120202-003 includes a Micro-USB software interface for configuration and updates. The charger features onboard battery monitoring for charge stage and amp hours returned.
Q: Are there cross-reference or equivalent part numbers for the CR 120202-003?
A: No cross-reference part numbers are available. The CR 120202-003 is a Crown replacement part with no known equivalent part numbers from other manufacturers.
Q: What are the battery chemistry requirements for the CR 120202-003?
A: The CR 120202-003 is compatible with lead-acid and AGM battery chemistries commonly used in Crown electric lift trucks.
Q: How do I replace the CR 120202-003?
A: To replace the CR 120202-003, ensure your equipment is powered off and disconnected from the power source. Follow the manufacturer's guidelines for safe removal and installation of the replacement charger.
