Product Description

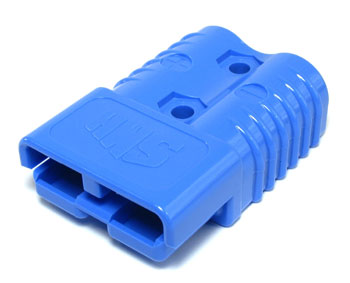

The CR 78723-8 is a blue-housed battery connector housing rated for 175 amps continuous at up to 36VDC. Manufactured from glass-reinforced thermoplastic, this direct replacement connector provides superior electrical insulation and corrosion resistance in Crown electric lift truck battery applications. The blue housing color enables quick visual amperage identification in the field. Designed for reliable performance in high-demand lift truck environments.
Specifications
Product Overview
| Part Number | CR 78723-8 |
Physical Specifications
| Amperage Rating | 175 amps continuous |
| Voltage Rating | Up to 36VDC |
| Housing Color | Blue |
| Material | Glass-reinforced thermoplastic |
| Connector Type | Battery connector housing |
| Related Part Numbers | CR 78723-2 (gray, 175A), CR 78723-7 (red, 175A), CR 78723-6 (350A) |
Compatibility
| Application | Crown electric lift trucks |
Frequently Asked Questions
Q: What does the blue housing color indicate on the CR 78723-8 connector?
A: The blue housing on the CR 78723-8 indicates a 175 amp connector rating. Crown electric lift trucks use color-coded housings to allow quick visual identification of amperage capacity by technicians.
Q: What is the amperage rating for the CR 78723-8?
A: The CR 78723-8 is rated for 175 amps continuous at up to 36VDC. This part is designed as the main battery connector interface in Crown electric lift trucks.
Q: How do the 175 amp connectors differ across Crown truck models?
A: Crown makes three 175 amp connector housings: CR 78723-2 (gray), CR 78723-7 (red), and CR 78723-8 (blue). Each may be used in different Crown truck series or model years. Check your truck documentation to identify which housing color and part number your equipment requires.
Q: Can the CR 78723-8 be used with the CR 78723-6 on the same truck?
A: No. The CR 78723-8 is rated for 175 amps while the CR 78723-6 is rated for 350 amps. These housings are not interchangeable and must match your specific battery connector amperage requirement.
Q: What material is the CR 78723-8 housing made from?
A: The CR 78723-8 housing is manufactured from glass-reinforced thermoplastic, providing strong electrical insulation, corrosion resistance, and durability in Crown electric lift truck battery connector applications.
Q: What are the failure symptoms that indicate CR 78723-8 replacement is needed?
A: Replace the CR 78723-8 if you observe corrosion at terminal connections, loose or corroded terminals, cracked or damaged housing, or intermittent battery power loss. These symptoms indicate connector interface failure requiring part replacement.
