Product Description
Diode
Specifications
Product Overview

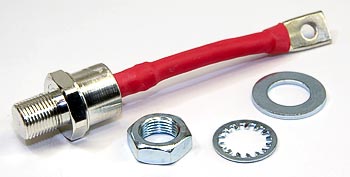

| Part Number | CR 94804 |
| Manufacturer | Crown Electronics |
Physical Specifications
| Component Type | Rectifier / Protective Diode |
| Voltage Rating | 24V, 36V, 48V systems |
| Function | Allows one-directional current flow; blocks reverse current |
| Typical Lifespan | 10+ years under normal operating conditions |
| Failure Mode | Thermal stress, power surges, capacitor ripple |
| Test Method | Digital multimeter diode test mode |
Compatibility
| Application | Motor control circuits, battery charging circuits, solenoid protection |
Frequently Asked Questions
Q: What role does the CR 94804 diode play in Crown electric lift truck circuits?
A: The CR 94804 is a rectifier or protective diode used in Crown electric lift truck motor control and battery charging circuits. It allows current flow in one direction and blocks reverse current, protecting solid-state components and preventing arcing when solenoids de-energize.
Q: Which voltage systems use the CR 94804 diode?
A: The CR 94804 is rated for 24V, 36V, and 48V electric lift truck systems. Confirm the voltage class and diode rating in your truck schematic before ordering, as voltage mismatch can cause component failure.
Q: What happens if the CR 94804 diode fails?
A: A failed diode can cause backward current flow, leading to solenoid chatter, erratic motor operation, battery drain, or control circuit faults. Symptoms include intermittent lift function, steering jitter, or repeated blown fuses. Replace immediately if suspected.
Q: How do I identify if the CR 94804 diode is defective?
A: Test the diode with a digital multimeter in diode test mode. A good diode shows continuity in one direction and open circuit in reverse. If the diode conducts in both directions or is open in both directions, it is failed and requires replacement.
Q: What is the typical lifespan of this diode component?
A: Under normal operating conditions, the CR 94804 diode lasts 10+ years. Failure typically occurs due to power surges, capacitor ripple, or thermal stress from inadequate cooling in the control module. Replace as part of preventive maintenance if you observe repeated failures.
