Product Description

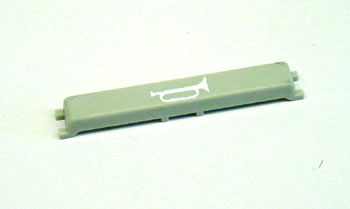

Crown CR 117267-003 Horn Button for electric pallet trucks. OEM panel-mount push-button switch for Crown PE 3000 series with 24VDC SPST contact, polycarbonate button, stainless spring, and solder tab terminal. Reference: manufacturer OEM parts. No cross-reference numbers found.
Compatibility: Fits pallet jacks made by Crown, model M Series Stacker. Alternate model: MSeriesStacker. SKU: CR 117267-003
Specifications
Electrical
| Rated Voltage | 24VDC nominal (lift truck accessory circuit) |
| Contact Current Rating | 5A (resistive load) |
| Control Voltage | 24VDC |
Material & Construction
| Spring Material | Stainless steel |
Part Numbers
| OEM Part Number | CR 117267-003 |
| Compatible Equipment | Crown PE 3000 Series electric pallet trucks |
Frequently Asked Questions
Q: What equipment does the CR 117267-003 horn button fit?
A: The CR 117267-003 is a genuine Crown OEM horn button switch designed for Crown PE 3000 Series and M Series Stacker electric pallet trucks. It is a panel-mount pushbutton with 24VDC control voltage rating and 5A contact current capacity. Verify your lift truck model and control circuit voltage match these specifications before ordering.
Q: What are the electrical specifications for CR 117267-003?
A: This horn button is rated for 24VDC nominal control voltage with a 5A resistive load contact current rating. It features an SPST (single pole, single throw) contact configuration with a stainless steel spring mechanism. The button uses a solder tab terminal for electrical connection.
Q: What materials are used in the CR 117267-003 construction?
A: The CR 117267-003 uses a polycarbonate button cap for durability and visibility, combined with a stainless steel spring for reliable actuation in high-cycle applications. The solder tab terminal ensures a secure electrical connection in factory control panels.
Q: How does the CR 117267-003 mount in the control panel?
A: The CR 117267-003 is a panel-mount design intended for direct fitment into Crown factory control handles and wired operator stations. The switch body fastens through the panel opening, with the solder tab terminal routed to the control circuit wiring harness.
