Product Description

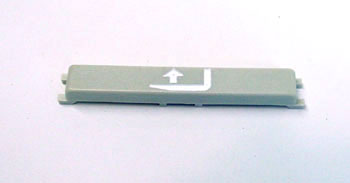

Crown CR 117267-001 Raise Button is a momentary panel-mount operator control designed for electric lift truck applications. Compatible with Crown M Series Stacker and PE 3000 Series, the button features normally open silver alloy contacts rated 5A at 24VDC, impact-resistant polycarbonate actuator, and industry-standard push-on spade terminals for DC control integration.
Compatibility: Fits pallet jacks made by Crown, model M Series Stacker. Alternate model: MSeriesStacker. SKU: CR 117267-001
Specifications
Dimensional
| Panel Thickness Range | Compatible with 0.040 to 0.125 inch panel thickness |
Electrical
| Switch Voltage | 24VDC control circuit |
| Connector Type | Push-on spade terminals, 0.187 inch |
Part Numbers
| OEM Part Number | CR 117267-001 |
| Manufacturer Part Number | 117267-001 |
| Compatibility | Compatible with Crown M Series Stacker and PE 3000 Series |
Performance
| Cycle Life | Rated for 100,000 cycles mechanical endurance |
| Electrical Service Factor | 1.0 |
Frequently Asked Questions
Q: What is the CR 117267-001 Raise Button and how does it work?
A: CR 117267-001 is a momentary panel-mount push button operator control for Crown electric lift trucks. When pressed, it energizes the raise circuit to lift the mast or load. The button features silver alloy contacts rated 5A at 24VDC and returns to open position when released.
Q: Which Crown models use CR 117267-001?
A: CR 117267-001 is compatible with Crown M Series Stackers and PE 3000 Series electric lift trucks. Alternate model designations include MSeriesStacker and PE3000. Verify your equipment matches these model ranges before ordering.
Q: What are the electrical specifications for CR 117267-001?
A: CR 117267-001 is rated 5A at 24VDC control circuit. Contacts are silver alloy construction for reliable switching. Connector type is push-on spade terminals, 0.187 inch diameter. Panel thickness compatibility range is 0.040 to 0.125 inch.
Q: What material is the button actuator and how durable is it?
A: CR 117267-001 features an impact-resistant polycarbonate actuator designed to withstand repeated operator actuation in warehouse and distribution environments. Polycarbonate resists UV degradation and maintains flexibility in cold storage temperatures.
Q: Can CR 117267-001 be used with PE Series and GPW Series lift trucks?
A: CR 117267-001 is designed primarily for Crown M Series Stacker and PE 3000 Series. Compatibility with other PE Series models (PE 4000, PE 4500) or GPW Series should be verified against Crown technical documentation. Electrical interface requirements must match the control system voltage and terminal configuration.
