Product Description

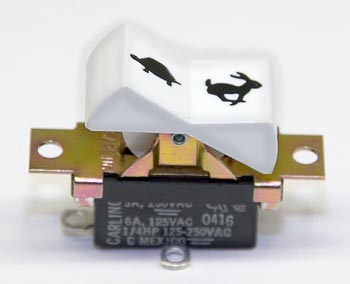

Genuine Crown OEM Rocker Switch CR 117268 designed for 3rd speed control on electric walkie pallet jacks and M Series stackers. Features SPST contact, panel mount design, rated 3A at 250VDC, alternate 6A at 125VDC, and 0.25HP at 125-250VAC. Turtle/Rabbit selector actuator.
Compatibility: Fits pallet jacks made by Crown, model M Series Stacker. Alternate model: MSeriesStacker. SKU: CR 117268
Specifications
Electrical Specifications
| Switch Type | Rocker switch, 3rd speed selector |
| Contact Rating | 3A at 250VDC |
| Alternate Contact Rating | 6A at 125VDC |
| Horsepower Rating | 0.25HP (1/4HP) at 125-250VAC |
Mechanical Specifications
| Switch Body Material | Polycarbonate thermoplastic housing |
Part Numbers & Compatibility
| OEM Part Number | 117268 |
| Manufacturer Part Number | 117268 |
| Compatible Equipment Models | Crown GPW Walkie Electric Pallet Jack; Crown M Series Stacker; Crown PE 3000 Series |
Performance Specifications
| Electrical Endurance | Rated for minimum 6,000 switching cycles at rated load |
Frequently Asked Questions
Q: What equipment does the CR 117268 rocker switch control?
A: The CR 117268 is a genuine Crown OEM rocker switch designed for third speed selector control on Crown GPW Walkie Electric Pallet Jacks, M Series Stackers, and PE 3000 Series electric lift trucks. This switch selects between turtle (slow) and rabbit (fast) speed modes for load handling.
Q: What are the electrical ratings of the CR 117268 rocker switch?
A: The CR 117268 rocker switch features an SPST (single pole, single throw) contact rated at 3A at 250VDC, with an alternate rating of 6A at 125VDC. The switch is also rated 0.25 horsepower at 125 to 250VAC for motor control applications. These ratings ensure safe operation of the third speed circuit.
Q: How does the turtle and rabbit actuator work on CR 117268?
A: The CR 117268 uses a turtle and rabbit rocker actuator to toggle between two speed modes. The turtle icon selects slow speed for precise load placement or heavy loads. The rabbit icon selects fast speed for general handling. The rocker toggles to maintain the selected mode until the operator switches it.
Q: Is the CR 117268 a panel-mount or pendant-mount design?
A: The CR 117268 is a panel-mount rocker switch designed for installation in Crown factory control panels and operator handle assemblies. It fastens through the panel opening and connects via terminals to the third speed control circuit wiring.
Q: Can CR 117268 be retrofitted to older Crown lift truck models?
A: The CR 117268 rocker switch is designed as an OEM factory component for Crown GPW, M Series, and PE 3000 Series equipment. Retrofitting to older or different models may require circuit compatibility verification. Verify your equipment model and control circuit specifications before ordering.
