Product Description

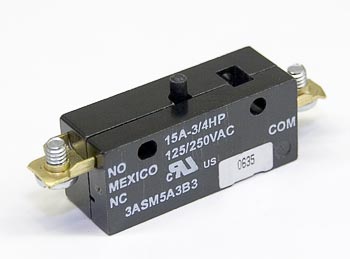

Crown CR 73374 is an OEM brake switch for electric lift trucks, rated 15A at 125/250VAC, 0.75 HP, snap-action type, compatible with M Series Stackers and PE 3000 models. Cross-references include part numbers 073374 and 236354.
Compatibility: Fits pallet jacks made by Crown, model PE 3000. Alternate model: PE3000. SKU: CR 73374
Specifications
Electrical Specifications
| Switch Rating | 15A at 125VAC |
| Horsepower Rating | 0.75 HP (3/4 HP) |
Mechanical Specifications
| Operating Force | 7.8 N maximum |
Part Numbers
| OEM Part Number | CR 73374 |
| Alternative OEM Part Number | 073374 |
| Cross-Reference Part Numbers | 073374, 236354 |
| Supersedes/Replaces | 236354 (matched as supersession/equivalent) |
| Compatible Equipment | Crown Electric Lift Trucks including M Series Stacker, PE 3000 |
Frequently Asked Questions
Q: What is the CR 73374 brake switch?
A: The CR 73374 is an OEM brake switch for Crown electric lift trucks. It is a snap-action type switch rated at 15A, 125/250VAC, 0.75 HP, used in the truck control circuit to manage braking functions.
Q: What Crown models is the CR 73374 compatible with?
A: The CR 73374 is designed for Crown M Series Stackers and PE 3000 pallet jacks. Verify your equipment model and series number before ordering.
Q: What are the electrical specifications for the CR 73374?
A: The CR 73374 is rated 15A at 125/250VAC with 0.75 HP capacity. It is a snap-action switch designed for reliable on-off control in electric lift truck brake circuits.
Q: What are the equivalent part numbers for CR 73374?
A: The CR 73374 is equivalent to part number 073374. It also supersedes part number 236354, which may appear in older Crown documentation.
Q: How do I know if the CR 73374 brake switch needs replacement?
A: Replace the CR 73374 if the brake circuit does not engage reliably, if the switch does not click or activate when pressed, or if there is visible corrosion or physical damage to the switch housing.
