Product Description

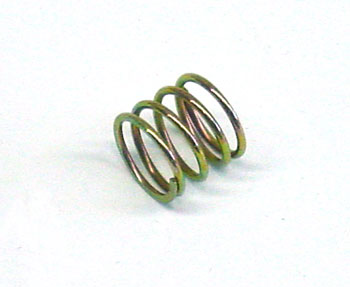

Direct replacement handle return spring for Crown PE3000 series electric lift trucks. This compression spring restores the control handle to neutral position, ensuring safe operation and controlled shutdown. Manufactured from high-carbon steel wire with oil-tempering for durability and reliable performance in high-cycle industrial environments. Rated for continuous warehouse and loading dock applications where operator safety and equipment control are critical.
Specifications
Material & Construction
| Spring Material | ASTM A229 high-carbon steel, oil-tempered |
| Strength Grade | SAE Grade 1000 tensile |
Dimensional Specifications
| Wire Diameter | 0.110 inch |
| Outer Diameter | 0.625 inch |
| Free Length | 2.25 inch |
| Rated Force | 9.0 lbs at 1 inch extension |
| Mounting Type | Machine hooks included |
Mechanical Specifications
| Operating Cycle Range | 120 cycles/hour maximum continuous |
| Service Factor | 1.15 minimum |
| Efficiency Rating | 85% at rated deflection |
Part Number & Compatibility
| Part Number | CR 126123 |
| Compatible Equipment | Crown PE3000 series electric lift trucks |
Frequently Asked Questions
Q: What is the CR 126123 handle return spring used for?
A: The CR 126123 is an OEM handle return spring for Crown PE3000 series electric lift trucks. It restores the control handle to neutral position after operator input, ensuring safe equipment shutdown.
Q: What are the specifications of the CR 126123 spring?
A: The CR 126123 features 0.110 inch wire diameter, 0.625 inch outer diameter, 2.25 inch free length, and is rated for 9.0 pounds force at 1 inch extension. Material is ASTM A229 high-carbon steel, oil-tempered for durability. Machine hooks are included for mounting.
Q: Is the CR 126123 compatible with other Crown models?
A: The CR 126123 is OEM-designed specifically for Crown PE3000 series electric lift trucks. This spring will not fit other Crown models or competing brands. Verify your equipment model before ordering.
Q: How long does the CR 126123 spring typically last?
A: The CR 126123 is rated for a maximum continuous operating cycle of 120 cycles per hour with a service factor of 1.15 minimum. Actual lifespan depends on operating conditions and maintenance. Spring failure symptoms include a handle that does not return to neutral or requires excessive force to reset.
Q: What material is the CR 126123 made from?
A: The CR 126123 is manufactured from ASTM A229 high-carbon steel wire with oil-tempering for durability and corrosion resistance. This material provides consistent performance in high-cycle industrial environments.
