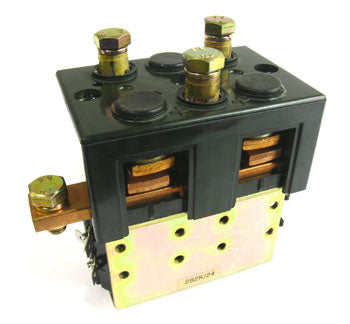

Contactor for Crown PE3000
CR 116794-003
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Crown CR 116794-003 is a forward and reverse contactor designed for electric lift trucks, rated 24VDC and 150A continuous. It features DPDT contacts and stud connections for heavy-duty intermittent operation. This direct replacement contactor is engineered for Crown electric pallet trucks and compatible with PE 3000 series models.
Specifications
Part Numbers & Compatibility
| Make | Crown |
| Model | PE 3000, PE3000 |
| Part Number | CR 116794-003 |
| Manufacturer Part Number | 116794-003 |
| Cross-Reference Part Numbers | Replaces 116794-002, 116794-005, 110613-003, 110613003, 132084-003, 123470-003, 106109-003, 802815, 112329, 112328 |
| Cross Reference Part Numbers | Replaces 116794-002, 116794-005, 110613-003, 110613003, 132084-003, 123470-003, 106109-003, 802815, 112329, 112328 |
| Compatibility | Fits pallet jacks made by Crown, model PE 3000. Alternate model: PE3000. |
Electrical Specifications
| Coil Voltage | 24VDC |
| Continuous Current Rating | 150 Amperes |
Additional Specifications
| Contact Configuration | DPDT (Double Pole Double Throw) |
| Terminal Type | Stud connections |
| Housing Material | Polymer composite with steel mounting base |
| Supersedes | 116794-002, 116794-005 |
| Description | Crown CR 116794-003 is a forward and reverse contactor designed for electric lift trucks, rated 24VDC and 150A continuous. It features DPDT contacts and stud connections for heavy-duty intermittent operation. This direct replacement contactor is engineered for Crown electric pallet trucks and compatible with PE 3000 series models. |
Frequently Asked Questions
Q: What equipment does the CR 116794-003 contactor fit?
A: The CR 116794-003 is a forward-reverse contactor engineered for Crown PE3000 Series electric lift trucks. It provides directional switching for traction motor circuits in these electric pallet jack models.
Q: What are the specifications of the CR 116794-003?
A: The CR 116794-003 is rated 24 VDC coil voltage with a 150-ampere continuous current rating. It features DPDT contacts with stud terminal connections, designed for heavy-duty intermittent operation in warehouse environments.
Q: Which part numbers does the CR 116794-003 replace?
A: The CR 116794-003 replaces and supersedes: 116794-002, 116794-005, 110613-003, 110613003, 132084-003, 123470-003, 106109-003, 802815, 112329, and 112328. Verify your equipment uses one of these earlier part numbers before substituting CR 116794-003.
Q: What is the difference between CR 116794-003 and CR 116794-002?
A: The CR 116794-003 is an updated design that supersedes CR 116794-002 and multiple legacy part numbers. Both are rated 24 VDC and 150A, but CR 116794-003 incorporates current Crown specifications and manufacturing standards. Use CR 116794-003 for new installations or as the preferred replacement.
Q: Does the CR 116794-003 have standard stud connections?
A: Yes. The CR 116794-003 features stud terminal connections. These allow direct connection to high-amperage traction motor circuits using ring terminals and fasteners, eliminating the need for crimp connectors on primary power leads.
Q: What material is the CR 116794-003 made from?
A: The CR 116794-003 is constructed from durable materials designed for long-term use in industrial environments. It is built to withstand the demands of heavy-duty operation.
Q: How should I replace the CR 116794-003?
A: When replacing the CR 116794-003, ensure you have the correct tools and follow proper safety procedures. Always refer to the equipment's service manual for detailed installation instructions.
