Product Description

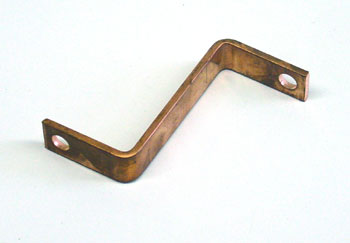

The CR 116550 is a high-performance bus bar engineered for Crown PE 3000 series electric pallet trucks. Featuring high-conductivity copper alloy contacts with silver over nickel plating, this component delivers reliable 150A continuous operation for demanding industrial applications. Designed for flexibility with screw, PCB tail, blind mate, and hot plug mounting options, the CR 116550 provides superior corrosion resistance and maintains consistent electrical performance in harsh warehouse environments.
Specifications
Material & Construction
| Guide Plate Material | Stainless steel |
| Contact Material | High-conductivity copper alloy with selective silver over nickel plating |
Electrical & Performance
| Continuous Operation | 150A |
| Bus Bar Thickness | 3.0 mm ±0.1 mm |
Part Numbers & Compatibility
| Part Number | CR 116550 |
| Alternate Model | PE3000 |
| Compatible Equipment | Crown PE 3000 Series Electric Pallet Truck |
| Mounting Options | Screw or PCB tail mounting, blind mate and hot plug applications |
Frequently Asked Questions
Q: What are the electrical specifications of the CR 116550 bus bar?
A: The CR 116550 supports 150A continuous operation and is designed for 3.0 mm ±0.1 mm thick bus bars. The contact material is high-conductivity copper alloy with selective silver over nickel plating for superior corrosion resistance and electrical performance.
Q: What materials are used in the CR 116550?
A: The CR 116550 features a stainless steel guide plate and high-conductivity copper alloy contacts with selective silver over nickel plating. This material combination provides long-term durability in industrial environments and wet storage conditions.
Q: Which Crown pallet jacks use the CR 116550 bus bar?
A: The CR 116550 is an OEM bus bar for Crown PE 3000 series electric pallet trucks. Verify your truck model matches PE 3000 before ordering.
Q: What mounting options does the CR 116550 support?
A: The CR 116550 supports screw mounting and PCB tail mounting configurations. It is also compatible with blind mate and hot plug applications for flexible system integration.
Q: Why is the silver over nickel plating used on the CR 116550?
A: The selective silver over nickel plating provides superior corrosion resistance and maintains low electrical resistance over extended service life. This coating protects the copper alloy substrate and ensures reliable current flow even in harsh industrial conditions.
Q: What is the tolerance for the CR 116550 bus bar thickness?
A: The CR 116550 is designed for bus bar thickness of 3.0 mm ±0.1 mm. This tight tolerance ensures proper electrical contact and mechanical fit. Do not use with bus bars outside this dimension range.
