Crown 24VDPDT Contactor for PE 3000
CR 116794-002
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

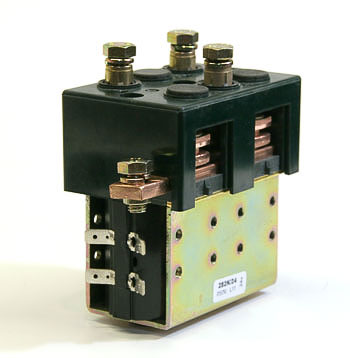

The CR 116794-002 is a 24-volt DPDT forward-reverse contactor designed for Crown PE 3000 Series electric pallet jacks. Rated for 150 amperes continuous operation, this electromagnetic contactor manages directional power switching in the traction circuit with dual-pole, dual-throw contact configuration. Compatible with Crown's integrated control systems, this direct replacement contactor ensures reliable forward and reverse motion in warehouse material handling applications including dock work, trailer loading, and horizontal transport operations.
Specifications
Part Numbers & Compatibility
| Make | Crown |
| Model | PE 3000, RR 3000 |
| Contactor Application | Forward and reverse power switching for traction circuits |
| Part Number | CR 116794-002 |
| Cross-Reference Part Numbers | CR116794-002, 116794-002 |
| Cross Reference Part Numbers | CR116794-002, 116794-002 |
| Compatibility | Crown PE 3000 Series electric pallet jacks |
Electrical Specifications
| Nominal Coil Voltage | 24 VDC |
| Continuous Current Rating | 150 A |
Performance Specifications
| Operating Mode | Electromagnetic, continuous duty |
Additional Specifications
| Contact Configuration | DPDT (Double Pole Double Throw) |
Frequently Asked Questions
Q: What equipment is the CR 116794-002 compatible with?
A: The CR 116794-002 is a replacement contactor designed for Crown PE 3000 Series electric end-rider pallet trucks. It is intended to fit models within this series and integrate with their 24-volt DC control system.
Q: What are the key features of the CR 116794-002?
A: The CR 116794-002 is a DPDT forward-reverse contactor that enables simultaneous switching for motor polarity reversal. This design supports reliable operation in directional power control applications.
Q: How does the CR 116794-002 perform in high-amp environments?
A: The CR 116794-002 is engineered for continuous high-amp operation and is suitable for use in traction circuits of Crown PE 3000 Series lift trucks. It meets the electrical demands of normal warehouse material handling use.
Q: What is the function of DPDT on the CR 116794-002?
A: DPDT stands for Double Pole Double Throw. This configuration allows the contactor to reverse motor polarity and switch between forward and reverse operation simultaneously, ensuring smooth directional control.
Q: Is the CR 116794-002 suitable for replacement use?
A: Yes, the CR 116794-002 is a replacement contactor designed for use in Crown PE 3000 Series electric pallet trucks. Verify compatibility with your specific equipment model before installation.
