Product Description

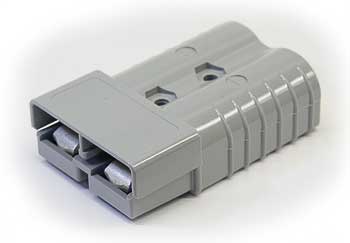

The AN 6320G1 is a heavy-duty SB350 Series power connector rated for 350A continuous current and 600V AC/DC operation. Designed as a two-pole, gray body connector with crimp termination, compatible with 2/0 AWG wire and constructed from impact-resistant polycarbonate. Cross-references include Brad Harrison 49210 and SMH SY6320G1, suitable for industrial electric lift truck wiring and battery applications.
Compatibility: Fits pallet jacks made by Crown, model PE 4000. Alternate model: PE4000. SKU: AN 6320G1
Specifications
Electrical
| Voltage Rating | 600V AC/DC continuous operation |
Part Numbers
| Cross-Reference Part Numbers | Brad Harrison 49210; SMH SY6320G1 |
| OEM Part Number | 6320G1 |
| Series | SB350 Series |
Frequently Asked Questions
Q: What is the maximum amperage and voltage for the AN 6320G1?
A: The AN 6320G1 is rated for 350 amps continuous current at 600V AC/DC. This heavy-duty connector is designed for high-power battery systems and main charging circuits in industrial electric lift trucks.
Q: What cable size does the AN 6320G1 require?
A: The AN 6320G1 accepts 2/0 AWG cable. This large-gauge wire is necessary to safely handle 350 amp currents without excessive heating or voltage drop over charging distances.
Q: What equipment does the AN 6320G1 fit?
A: The AN 6320G1 is compatible with Crown PE 4000 electric pallet jacks and similar heavy-duty material handling equipment requiring 350 amp power connections. Verify your equipment model before ordering.
Q: What are the cross-reference part numbers for the AN 6320G1?
A: The AN 6320G1 cross-references to Brad Harrison 49210 and SMH SY6320G1. These are equivalent connectors for high-amperage DC power applications in industrial and electric vehicle systems.
Q: Is the AN 6320G1 housing impact-resistant?
A: Yes, the AN 6320G1 features an impact-resistant polycarbonate housing in gray. This design withstands warehouse impacts and handling stress while maintaining electrical safety and durability in harsh industrial environments.
Q: Why is the AN 6320G1 heavier-duty than smaller connectors?
A: The AN 6320G1 uses a two-pole configuration and larger contact surfaces to distribute 350 amps safely. This reduces contact resistance and heat generation compared to smaller 50 or 175 amp connectors, extending equipment life.
