Product Description

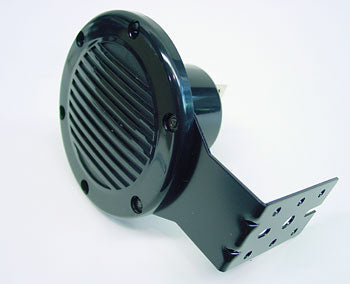

Crown CR 129244-001 is an electronic horn designed for electric lift trucks, rated for 24VDC to 48VDC operation, featuring a 3.5-inch nominal diameter, straight mounting bracket, and 110 dB ±5 dB acoustic output with a 2-terminal configuration. Compatible with Crown PE 4000 and PE 4500 series equipment.
Compatibility: Fits pallet jacks made by Crown, model PE 4000. Alternate model: PE4000. SKU: CR 129244-001
Specifications
Electrical
| Nominal Operating Voltage | 24VDC, 36VDC, 48VDC |
| Voltage Range | 24 to 48 VDC |
| Sound Pressure Level | 110 dB ±5 dB |
| Terminal Configuration | 2-terminal design |
| Service Life | 500,000 actuation cycles |
Part Numbers
| OEM Part Number | CR 129244-001 |
| Manufacturer Part Number | 129244-001 |
Frequently Asked Questions
Q: What voltage range does the CR 129244-001 electronic horn operate at?
A: The CR 129244-001 electronic horn operates across a 24 to 48 VDC range, with nominal operating voltages of 24VDC, 36VDC, and 48VDC. This allows compatibility with Crown PE 4000 and PE 4500 series equipment across different voltage configurations.
Q: Which Crown lift truck models are compatible with the CR 129244-001 horn?
A: The CR 129244-001 is designed for Crown PE 4000 and PE 4500 series electric lift trucks. The horn features a 2-terminal configuration and straight mounting bracket, making it a direct fit for these models.
Q: What is the acoustic output specification for the CR 129244-001?
A: The CR 129244-001 produces a sound pressure level of 110 dB plus or minus 5 dB. This output level meets standard warning requirements for industrial material handling equipment in warehouse and facility environments.
Q: What is the service life expectancy for the CR 129244-001 electronic horn?
A: The CR 129244-001 is rated for 500,000 actuation cycles. Under typical operational use in daily material handling applications, this translates to several years of reliable service before replacement is needed.
Q: What are the physical dimensions and mounting specifications for the CR 129244-001?
A: The CR 129244-001 has a nominal diameter of 3.5 inches and includes a straight mounting bracket for direct installation on Crown lift truck control panels. The 2-terminal wiring configuration simplifies electrical integration.
