Product Description

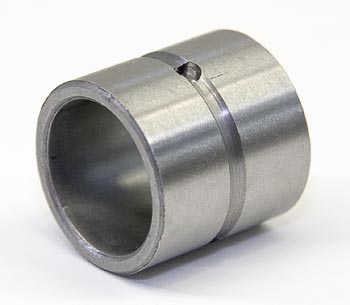

Crown CR 065117-001 Bushing HTX is a sintered iron frame and undercarriage bushing for electric pallet trucks (PE 3000/4000/400 series; Raymond 8300/8400/8500 series), rated for 8000 lbs static load, featuring 1.006 inch I.D., 1.253 inch O.D., and 1.25 inch body length, with groove and lubrication hole, manufactured to OEM specification.
Compatibility: Fits pallet jacks made by Crown, model PE 4000. Alternate model: PE4000. SKU: CR 065117-001
Specifications
Part Numbers
| Manufacturer Part Number | CR 065117-001 |
| OEM Part Number | 065117-001 |
| Equivalent/Interchange Part Number | 65117-001 |
| Model Compatibility | Compatible with Crown PE 3000, PE 400, PE 4000, and Raymond 8300, 8400, 8500 series electric pallet trucks |
| Cross-Reference Part Numbers | 65117-001 (interchange); No additional cross-reference part numbers available |
Frequently Asked Questions
Q: What are the dimensions and load rating of the CR 065117-001 bushing?
A: The CR 065117-001 is a sintered iron bushing with 1.006 inch inner diameter (I.D.), 1.253 inch outer diameter (O.D.), and 1.25 inch body length. It is rated for 8000 pounds static load and features a lubrication groove and hole.
Q: Which pallet trucks are compatible with CR 065117-001?
A: The CR 065117-001 fits Crown PE 3000, PE 400, and PE 4000 series electric pallet trucks, and Raymond 8300, 8400, and 8500 series models.
Q: What is the cross-reference part number for CR 065117-001?
A: The equivalent interchange part number is 65117-001. This cross-reference can be used when verifying interchangeability with other OEM catalogs.
Q: What material is CR 065117-001 manufactured from?
A: CR 065117-001 is constructed from sintered iron (sintered Fe). Sintered iron provides self-lubricating properties suitable for frame and undercarriage bushing applications.
