Product Description

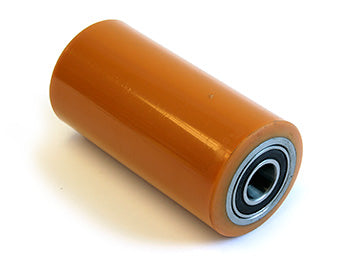

Crown 100611-035 Load Wheel Assembly delivers reliable performance for heavy-duty material handling applications. Features polyurethane tread bonded to steel core with 95A durometer hardness, 3.25-inch outer diameter, and 2.00-inch tread width. Includes four sealed bearings for smooth, consistent operation under demanding load conditions. Direct replacement for Crown PE 4000 and PE 4500 electric lift trucks.
Specifications
Material & Construction
| Material Specification | Polyurethane tread with steel core |
| Shore Hardness | 95A durometer |
Dimensions
| Outer Diameter | 3.25 inches |
| Width | 2.00 inches |
| Bore | 2.047 inches |
Components & Assembly
| Bearings Included | Four sealed bearings |
| Intended Use | High-load and heavy-duty applications |
Part Numbers
| Part Number | 100611-035 |
| Cross-Reference Part Numbers | CR100611-035, CR100611035, 100611035 |
| Compatible Equipment | Crown PE 4000, Crown PE 4500 |
Frequently Asked Questions
Q: Which Crown electric lift truck models are compatible with the CR 100611-035?
A: The CR 100611-035 is designed for Crown PE 4000 and PE 4500 Series electric lift trucks. Confirm your equipment model and serial range match these specifications before ordering.
Q: What are the complete dimensions and specifications of the CR 100611-035?
A: The CR 100611-035 features a 3.25 inch outer diameter, 2.00 inch tread width, 2.047 inch bore diameter, 95A durometer polyurethane tread bonded to steel core, and includes four sealed bearings for consistent smooth operation.
Q: What cross-reference or equivalent part numbers exist for the CR 100611-035?
A: The CR 100611-035 cross-references with CR100611-035, CR100611035, and 100611035. These are all equivalent part numbers representing the same load wheel assembly. Use whichever number appears in your equipment documentation.
Q: Is the CR 100611-035 engineered for heavy-duty use?
A: Yes, the CR 100611-035 is purpose-designed for high-load and heavy-duty industrial material handling applications. The 95A durometer polyurethane provides wear durability while the four-bearing assembly ensures consistent performance under demanding load conditions.
Q: What wear indicators show the CR 100611-035 requires replacement?
A: Replace this wheel when visible tread wear patterns appear, flat spots develop, grip performance on floors deteriorates, or the wheel does not spin freely. Typical service life in continuous heavy-duty operation is 12 to 24 months. Check bearing condition periodically; replace bearings if noise or rough rotation develops.
