Product Description

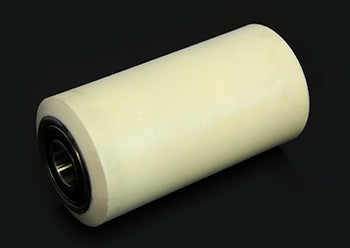

Crown OEM Load Wheel Assembly CR 100462-XL-A for PE 3000 Series Electric Pallet Trucks. Features high-capacity cast polyurethane compound (97A XL, Hyload grade), 3.25-inch diameter, 6.5-inch tread width, 2.047-inch bore with 2 x 6205 bearings and spacer. Cross-reference: CR 100462-302-88, 100462, 10046230288.
Compatibility: Fits pallet jacks made by Crown, model PE 4000. Alternate model: PE4000. SKU: CR 100462-XL-A
Specifications
Part Numbers
| OEM Part Number | CR 100462-XL-A |
| Manufacturer Part Number | CR 100462-XL-A |
| Cross-Reference Part Numbers | Replaces CR 100462-302-88, equivalent to 100462, 100462-302-88, CR10046230288, 10046230288 |
| Compatible Models | Crown PE 3000 Series Electric Pallet Trucks |
Frequently Asked Questions
Q: What are the dimensions of the CR 100462-XL-A wheel assembly?
A: The CR 100462-XL-A has a 3.25 inch outside diameter and 6.5 inch tread width. The bore diameter is 2.047 inches. These dimensions must match your pallet jack mounting to ensure proper fit and load centering.
Q: Which bearing configuration does the CR 100462-XL-A use?
A: The CR 100462-XL-A features two 6205 deep groove ball bearings with a spacer. This configuration provides radial support and maintains proper wheel geometry under load. The bearings are pre-installed and ready for mounting.
Q: Is the CR 100462-XL-A compatible with Crown PE 3000 and PE 4000 series trucks?
A: Yes, the CR 100462-XL-A is engineered to fit both Crown PE 3000 and PE 4000 series electric pallet jacks. Verify your equipment model plates match before ordering, as different series may have different mounting requirements.
Q: What does Hyload grade polyurethane mean on the CR 100462-XL-A?
A: Hyload is a high-capacity cast polyurethane designation indicating 97A durometer hardness and enhanced load-bearing capacity. This grade handles sustained heavy loads in warehouse and distribution center applications without deforming or losing contact with the floor.
Q: What legacy part numbers does the CR 100462-XL-A replace?
A: The CR 100462-XL-A replaces CR 100462-302-88 and is equivalent to OEM part number 100462. If your service records reference 100462-302-88 or 10046230288, you can substitute the CR 100462-XL-A without modification.
Q: Should I replace wheel assemblies as a pair or individually?
A: For optimal handling geometry and even load distribution, replace both front load wheels at the same time. Mismatched wheel wear causes steering drag and accelerates bearing wear on the newer wheel.
