Product Description

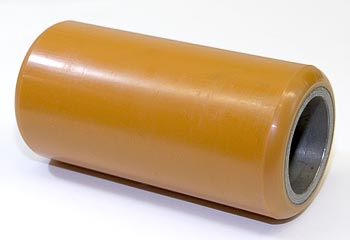

Crown load wheel assembly 100462 is a heavy-duty component for electric pallet jack operations. Built with cast polyurethane compound and dual 6205 precision bearings, this wheel delivers smooth, reliable performance under continuous heavy-load conditions. The extended bore spacer configuration ensures stability and extended service life across demanding warehouse environments.
Featuring a 3.25-inch diameter and 6.5-inch tread width, the 100462 is designed for direct replacement on Crown PE 3000 and PE 4000 Series pallet trucks and PR Rider models. Cast at 95A Shore A hardness in durable Durarun or Compound 305 formulation, this assembly provides floor protection and consistent load handling for long-run operations.
Specifications
Material & Construction
| Wheel Material | Cast polyurethane compound (Durarun or Compound 305) |
| Shore A Hardness | 95A |
Dimensions & Specifications
| Wheel Diameter | 3.25 inches |
| Tread Width | 6.5 inches |
| Bore Size | 2.047 inches |
| Bearing Bore Depth | 1.44 inches |
Mechanical Specifications
| Bearing Configuration | Dual 6205 ball bearings with extended bore spacer |
| Assembly Designation | -88 assembly (complete wheel assembly with bearings installed) |
Part Numbers & Compatibility
| Part Number | 100462 |
| Crown Part Number | Crown 100462 |
| Compatible Equipment | Crown PE 3000 Series Pallet Trucks, Crown PE 4000 Series Pallet Trucks, Crown PR Rider Pallet Trucks |
Application
| Application Category | Heavy load capacity, extended run warehouse operations |
Frequently Asked Questions
Q: What are the key dimensions of the 100462 load wheel?
A: The 100462 has a 3.25-inch outside diameter, 6.5-inch tread width, and 2.047-inch bore diameter. It features a 1.44-inch bearing bore depth and extended bore spacer configuration designed for Crown PE 3000, PE 4000, and PR Rider series pallet trucks.
Q: What material and hardness rating does the 100462 have?
A: The 100462 is manufactured from cast polyurethane compound at 95A Shore A hardness. It is available in Durarun or Compound 305 formulations, both engineered for heavy load capacity operations and superior floor protection in warehouse environments.
Q: Which Crown pallet truck models are compatible with the 100462?
A: The 100462 is a factory-spec direct replacement for Crown PE 3000 Series Pallet Trucks, Crown PE 4000 Series Pallet Trucks, and Crown PR Rider Pallet Trucks. Always verify your equipment bore diameter matches the 2.047-inch specification before ordering.
Q: What bearing type does the 100462 use?
A: The 100462 features dual 6205 ball bearings with an extended bore spacer configuration. This dual bearing design delivers smooth rotation, reduced friction, and extended service life in heavy-duty operations.
Q: How do I identify wear on the 100462 load wheel?
A: Monitor for flat spots on the wheel surface, visible cracking or chunks missing from the polyurethane, or grinding and noise during rotation—signs that the bearings may be degrading. Surface discoloration or hardening of the compound also indicate age-related wear.
Q: What is the typical lifespan of the 100462 wheel assembly?
A: The 100462 lifespan depends on daily usage hours, average load weight, floor conditions, and maintenance practices. High-frequency warehouse operations may require replacement within 18-36 months. The dual bearing design extends service life compared to single-bearing alternatives. Store in a cool, dry location when not in use to minimize compound degradation.
