Product Description

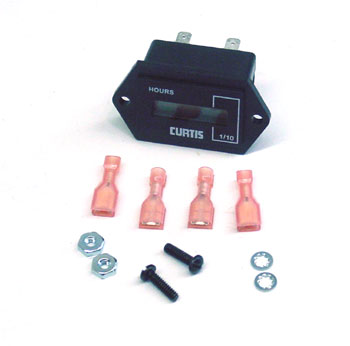

Crown direct replacement hour meter for electric lift trucks and WAVE work assist vehicles. This panel-mount LCD hour meter displays cumulative runtime from 0 to 9999.9 hours, designed for accurate maintenance scheduling and fleet tracking. Operates on 12–48 VDC input with body dimensions of 31 mm x 54 mm. Maintains reliable timekeeping for Crown Wave equipment.
Specifications
Electrical Specifications
| Operating Voltage Range | 12 VDC to 48 VDC |
| Display Range | 0 to 9999.9 hours |
Physical Specifications
| Body Dimensions | 31 mm x 54 mm |
| Mount Type | Panel Mount |
Part Information
| Part Number | 113773-004 |
| Compatibility | Crown Wave electric pallet jacks and WAVE work assist vehicles |
Frequently Asked Questions
Q: What are the dimensions and voltage specifications of the CR 113773-004 hour meter?
A: The CR 113773-004 is a panel-mount hour meter with body dimensions of 31 mm x 54 mm. It operates on 12 VDC to 48 VDC input and features an LCD display with a range of 0 to 9999.9 hours for tracking equipment runtime.
Q: Which Crown lift truck models is the CR 113773-004 designed for?
A: The CR 113773-004 is compatible with Crown Wave electric pallet jacks and WAVE work assist vehicles. It is designed as a direct replacement hour meter for the service panel of these models.
Q: Can the CR 113773-004 be used as a replacement for the CR 113773-001?
A: No. The CR 113773-004 is not interchangeable with the CR 113773-001. The CR 113773-004 has different body dimensions (31 x 54 mm) compared to the CR 113773-001 (52 mm diameter, 38 mm depth) and is designed for Crown Wave models, not PE 4000 models.
Q: What does the CR 113773-004 hour meter display represent?
A: The LCD display shows cumulative operating hours for the Crown Wave or work assist vehicle. This data is used for maintenance scheduling, fleet tracking, and determining service intervals based on runtime rather than calendar days.
Q: How does the CR 113773-004 determine when the vehicle is running?
A: The meter counts hours whenever 12-48 VDC power is supplied to the unit. It is wired to the main power circuit so it accumulates time during all periods when the lift truck is powered on and operational.
