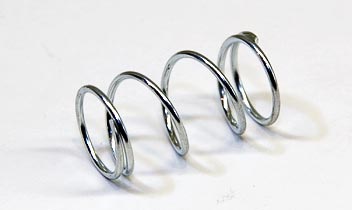

CR 104329

Frequently Asked Questions

Q: What are the dimensional specifications of the CR 104329 compression spring?
A: The CR 104329 has a free length of 0.75 inch, outside diameter of 0.360 inch, and wire diameter of 0.041 inch. These dimensions are critical for proper fit in Crown WAVE electric lift truck assemblies.

Q: What material is the CR 104329 spring manufactured from?
A: The CR 104329 is manufactured from ASTM A228 music wire, a high-carbon steel material selected for its spring properties, tensile strength, and fatigue resistance in lift truck hydraulic and mechanical systems.

Q: What is the spring rate and maximum working load of the CR 104329?
A: The CR 104329 has a spring rate of 22.71 lbs per inch and a rated maximum working load of 8.99 lbs. Do not exceed the maximum working load to avoid permanent deformation or failure.

Q: Which Crown lift truck models use the CR 104329 spring?
A: The CR 104329 is compatible with Crown pallet jacks and WAVE electric lift truck models. Verify your specific equipment serial range and model designation before ordering.

Q: Are there cross-reference or supersession part numbers for the CR 104329?
A: No cross-reference or supersession part numbers are currently available for the CR 104329. Use the OEM part number CR 104329 for ordering and parts identification.

Q: How does the ASTM A228 material specification affect spring durability?
A: ASTM A228 music wire provides excellent fatigue life and resilience, making it ideal for repeated compression and extension cycles in material handling equipment. The material maintains consistent spring rate performance over extended service life when operated within rated load limits.
