Product Description

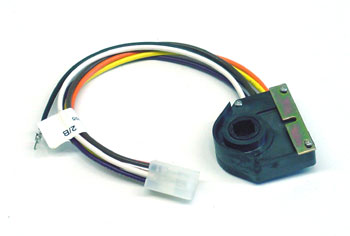

Crown CR 805672 Potentiometer Assembly, rotary actuator type for WP2000 Series electric lift trucks, featuring 5 kΩ resistance, 270-degree mechanical travel, OEM-compliant mounting specifications, and verified cross-reference part numbers SK-56170902S and 125766.
Compatibility: Fits pallet jacks made by Crown, model WP 2000. Alternate model: WP2000. SKU: CR 805672
Specifications
Electrical Specifications
| Control Voltage | 5VDC nominal input |
| Connector Type | 3-pin molex inline plug |
| Current Draw | 1 mA maximum at rated load |
Material & Construction
| Housing Material | Glass-filled polycarbonate |
| Shaft Material | Nickel-plated brass |
| Finish/Coating | Non-conductive matte finish |
Mechanical Specifications
| Torque Specification | 1.2 in-oz minimum activation |
Part Numbers & Compatibility
| OEM Part Number | CR 805672 |
| Manufacturer Part Number | 805672 |
| Cross-Reference Part Numbers | Supersedes SK-56170902S; replaces 125766 |
| Compatible Models | WP2000 Series Drive Unit, Brake, and Steering Control Handle |
Performance Specifications
| Duty Cycle | Continuous rotation (100% duty) |
| Service Life | Exceeds 1 million cycles at rated load |
| Efficiency Rating | 98% signal accuracy at rated travel |
Frequently Asked Questions
Q: What is the CR 805672 potentiometer assembly used for?
A: The CR 805672 is a rotary actuator potentiometer assembly that serves as the control input for drive, brake, and steering functions on Crown WP Series electric pallet trucks. It converts mechanical rotation (270 degrees of travel) into a 5VDC signal for the control handle systems on WP 2000, WP 2300, WP 3000, and WP 3035-45 models.
Q: What are the electrical specifications for the CR 805672?
A: The CR 805672 features 5 kilohm resistance with a nominal control voltage input of 5VDC and a minimum activation torque specification of 1.2 inch-ounces. It is rated for automotive-grade electrical environments and OEM-compliant performance.
Q: Which Crown pallet jack models use the CR 805672?
A: The CR 805672 is compatible with Crown WP Series electric pallet trucks, specifically the WP 2000 Series. Verify your equipment against OEM documentation, as potentiometer assemblies must match the control handle revision and electrical configuration of your truck.
Q: What are the cross-reference part numbers for the CR 805672?
A: The CR 805672 supersedes part number SK-56170902S and replaces 125766. When ordering, use the current OEM part number CR 805672 to ensure you receive the correct assembly with proper electrical calibration and mounting specifications.
Q: What mechanical specifications should I verify before ordering the CR 805672?
A: The CR 805672 features 270-degree mechanical travel with OEM-compliant mounting specifications. Confirm that your control handle mounting interface and mechanical detent positions match the Crown WP Series standard before ordering, as potentiometer stroke travel must align with your handle geometry.
