Product Description

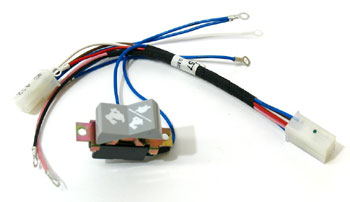

Crown CR 805857 traction speed switch assembly for electric pallet jacks—factory-matched for WP 2000 Series equipment. This direct replacement switch delivers reliable 24VDC control with single-pole double-throw contact configuration rated for 2A maximum current. Molded thermoplastic actuator with 0.187-inch blade terminals ensures precise traction motor speed control and consistent performance across thousands of cycles.
Specifications
Electrical
| Voltage Rating | 24VDC nominal system voltage |
| Current Rating | 2A maximum at 24VDC |
| Connector Type | Blade terminal, 0.187 inch wide |
| Switch Type | Single pole double throw (SPDT) |
Material & Construction
| Actuator Material | Molded thermoplastic, non-metallic |
Part Numbers
| Part Number | CR 805857 |
| Alternate Number | 805857 |
Compatibility
| Compatible Equipment | Crown WP 2000 Series electric pallet jacks |
Performance
| Cycle Life | 250,000 cycles minimum at rated load |
Frequently Asked Questions
Q: What type of switch is the CR 805857 for Crown WP 2000 series?
A: The CR 805857 is an OEM traction speed switch for Crown WP 2000 series electric pallet trucks. It is a single pole double throw switch rated for 24VDC systems and a maximum current of 2A. It provides traction motor speed control through blade terminal contacts.
Q: What are the CR 805857 terminal specifications?
A: The CR 805857 features 0.187-inch wide blade terminals with molded thermoplastic actuator material. Verify terminal compatibility and gauge with your control wiring before ordering to ensure proper crimp fit.
Q: Can the CR 805857 be used on Crown WP 2300 series equipment?
A: The CR 805857 is specifically designed for WP 2000 series pallet trucks. For WP 2300 compatibility, use the CR 805859 switch assembly instead. Using incompatible switches may cause control failures.
Q: What is the rated current for the CR 805857 switch?
A: The CR 805857 is rated for a maximum of 2A at 24VDC. Exceeding this current rating will damage the switch contacts and may cause circuit failures or loss of traction control.
Q: Is the CR 805857 a direct OEM replacement part?
A: Yes, the CR 805857 is a factory-matched OEM part for Crown WP 2000 equipment. It provides precise traction control and demonstrates durable cycle life as a direct replacement for worn or failed original switches.
