Product Description

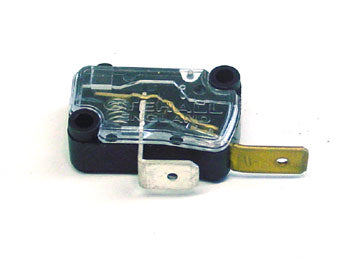

The CR 805864 is a micro switch designed for Crown WP 2000 and WP 2300 series electric pallet jacks. This mast position sensor features a plunger actuator with SPST contacts for precise mast height detection and control system integration. Operating at 24VDC, it prevents mast over-travel and ensures safe load handling. Pre-wired with terminals for quick integration into control circuits, the thermoplastic housing is rated for electric lift truck environments.
Specifications
Electrical
| Operating Voltage | 24VDC |
| Contact Type | SPST (Single Pole Single Throw) |
| Contact Rating | Rated for low voltage control signals |
Material & Construction
| Actuator Type | Plunger |
| Housing Material | Thermoplastic enclosure |
| Wiring | Pre-wired with terminals |
Part Numbers
| Part Number | CR 805864 |
| Equipment Compatibility | Crown WP 2000, Crown WP 2300 |
Frequently Asked Questions
Q: What is the CR 805864 micro switch used for in Crown lift trucks?
A: The CR 805864 is an OEM micro switch for mast position sensing in Crown WP 2000 and WP 2300 series electric pallet trucks. It detects mast extension limits and integrates into 24VDC control systems to prevent over-travel and protect load handling integrity.
Q: What type of actuator does the CR 805864 have?
A: The CR 805864 features a plunger actuator with SPST (single pole single throw) contacts rated for low-voltage control signals. The plunger design allows precision triggering at specific mast heights.
Q: Is the CR 805864 pre-wired?
A: Yes, the CR 805864 comes pre-wired with terminals for direct integration into control logic circuits and lift truck control modules. Verify wire gauge and connector type match your equipment before ordering.
Q: What is the housing material for the CR 805864?
A: The CR 805864 has a thermoplastic enclosure rated for electric lift truck environments. This material provides durability, temperature stability, and resistance to hydraulic fluid contact.
Q: Can the CR 805864 be used in both WP 2000 and WP 2300 series equipment?
A: Yes, the CR 805864 is compatible with both Crown WP 2000 and WP 2300 series equipment. Verify that mast sensor mounting position and travel distance match your specific model before ordering.
Q: What voltage rating does the CR 805864 have?
A: The CR 805864 is rated for 24VDC system integration. Confirm your equipment operates on 24V nominal before ordering, as this switch is not compatible with 36V systems.
